Installation of a RS 22 Reflection Sensor

This chapter describes the installation of a BST RS 22 reflection sensor to the integrated sensor holder of the sensor slide.

Accessories required

Order Number

Designation

249 806

Mounting kit RS 22

Procedure

Installation of the RS 22 line and contrast sensor

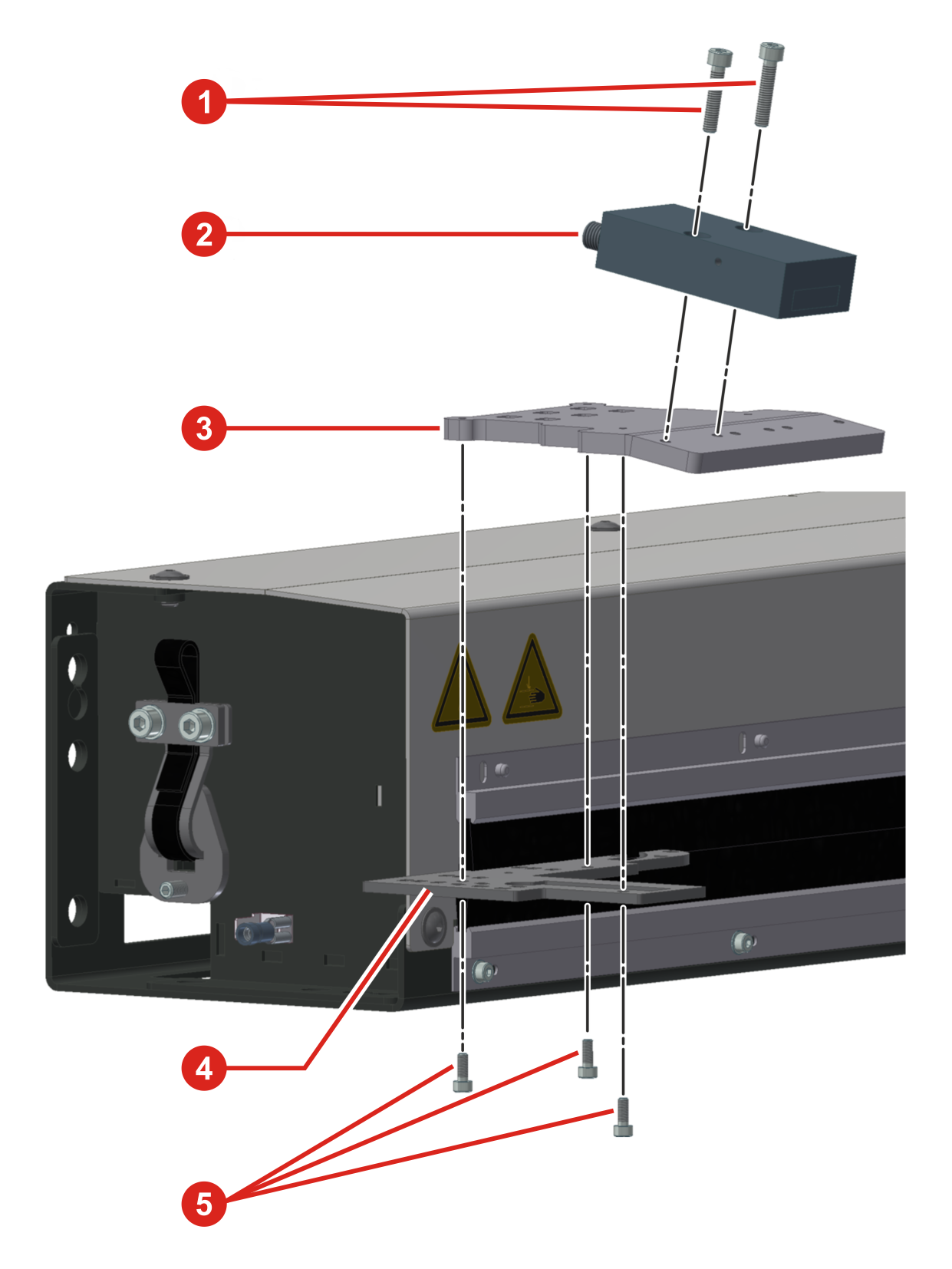

  1. Fix the adapter plate ③ to the sensor holder ④ of the sensor slide using the three screws ⑤ (M3x8).
  1. Then fix the RS 22 reflection sensor ② to the adapter plate ③ using the two screws ① (M4x20).
