Installation of an Edge Sensor
This chapter describes the installation of a BST edge sensor to the integrated sensor holder of the sensor slide.

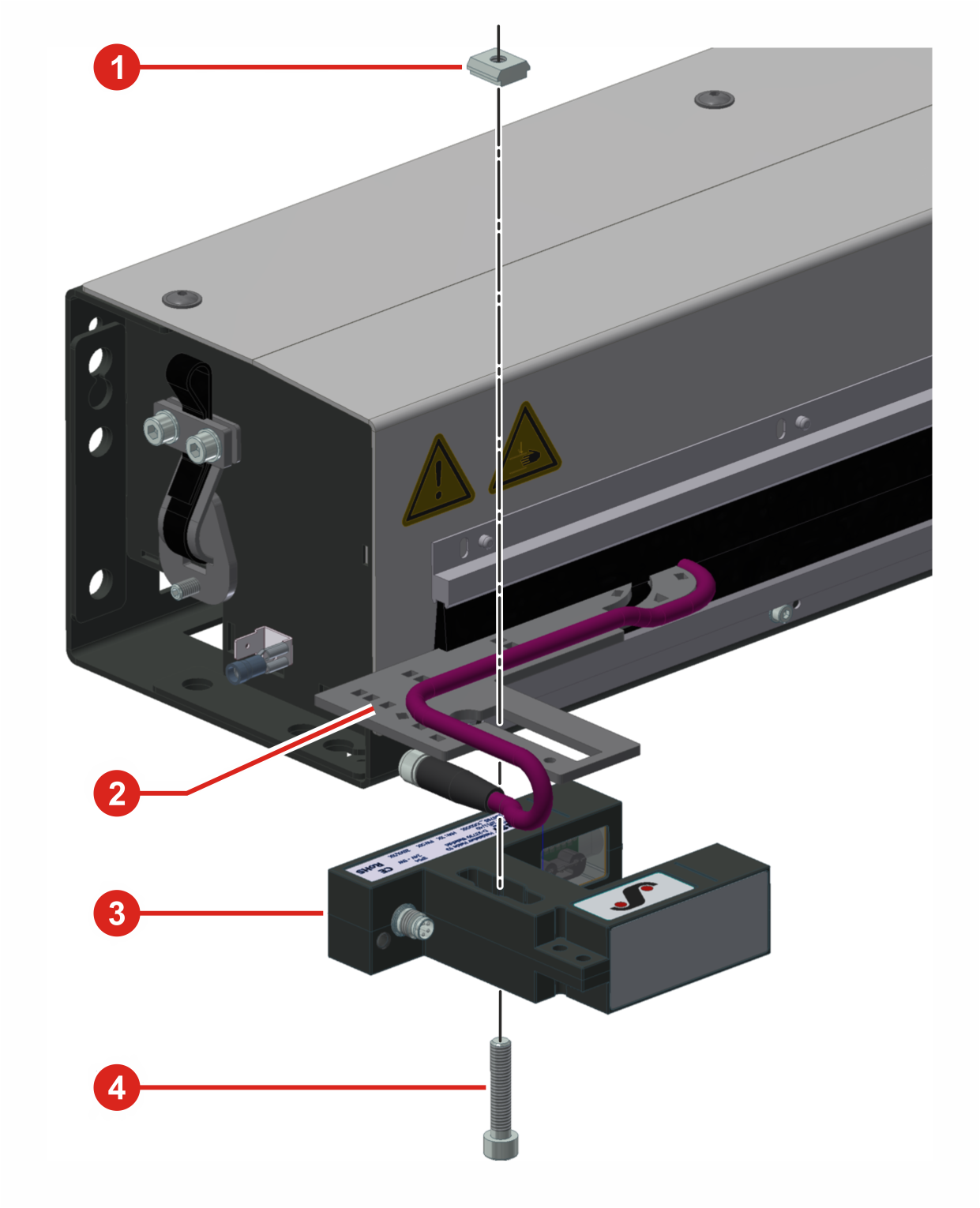

- ▶Fix the edge sensor ③ to the sensor holder ② of the sensor slide using the supplied screw ④ (M6x30) and sliding block ① (see figure).
