Nameplates
The nameplates are located on the top of the controller and on the rear of the control panel.

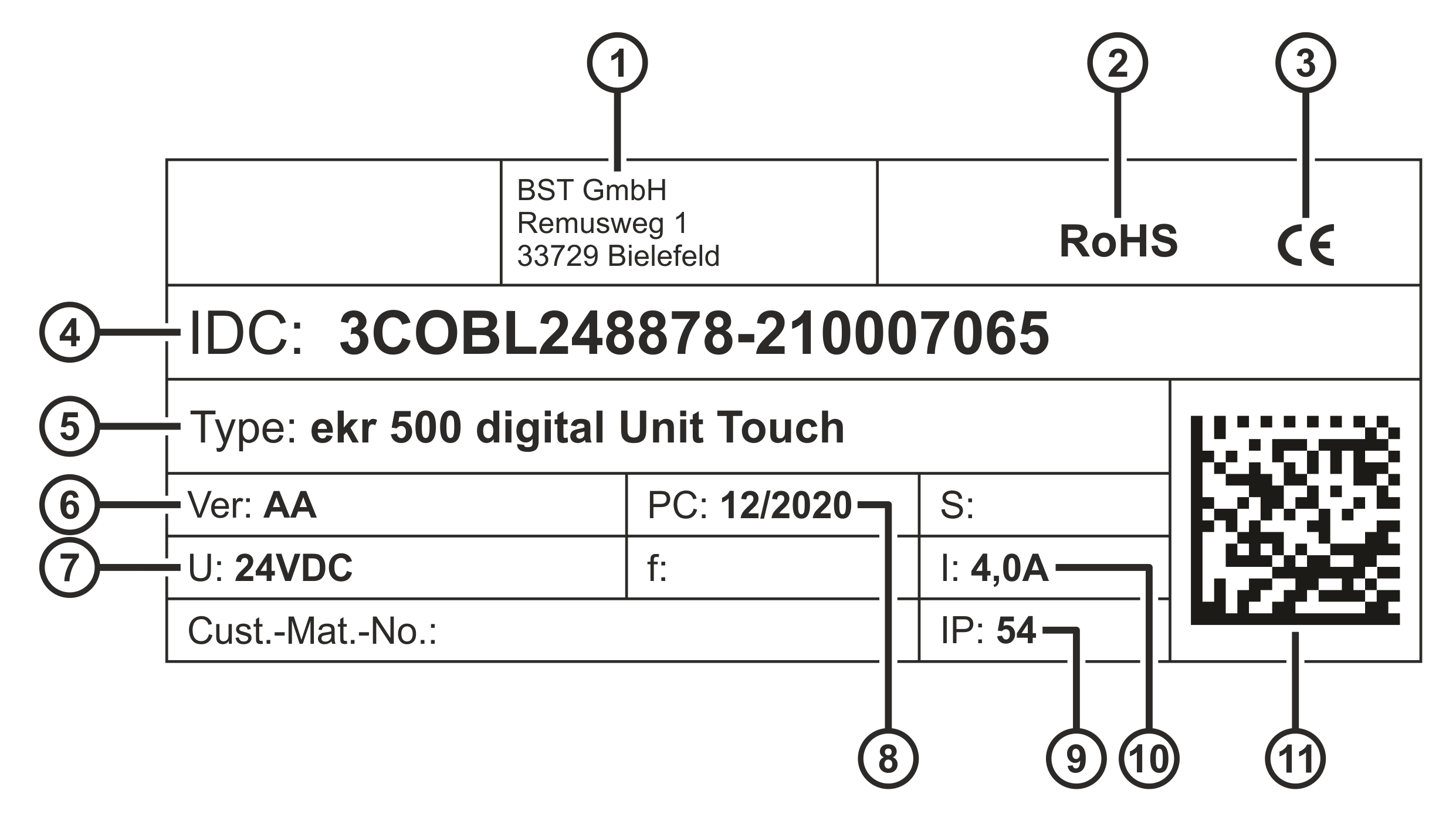

The nameplate displayed is only an example. Please obtain the current data from the nameplate attached to the product.
Rotate the smartphone by 90 degrees to show the entire table.
Pos. | Field | Meaning |
|---|---|---|
① | Address | Manufacturer address |
② | Certificates | RoHS designation |
③ | CE designation | |
④ | IDC | Serial number |
⑤ | Type | Type designation |
⑥ | Ver | Hardware version |
⑦ | U | Operating voltage |
⑧ | PC | Date of manufacture |
⑨ | IP | Protection type |
⑩ | I | Nominal current consumption |
⑪ | Code | Data matrix code, |
