Edge Sensors (Sensor 1/2)

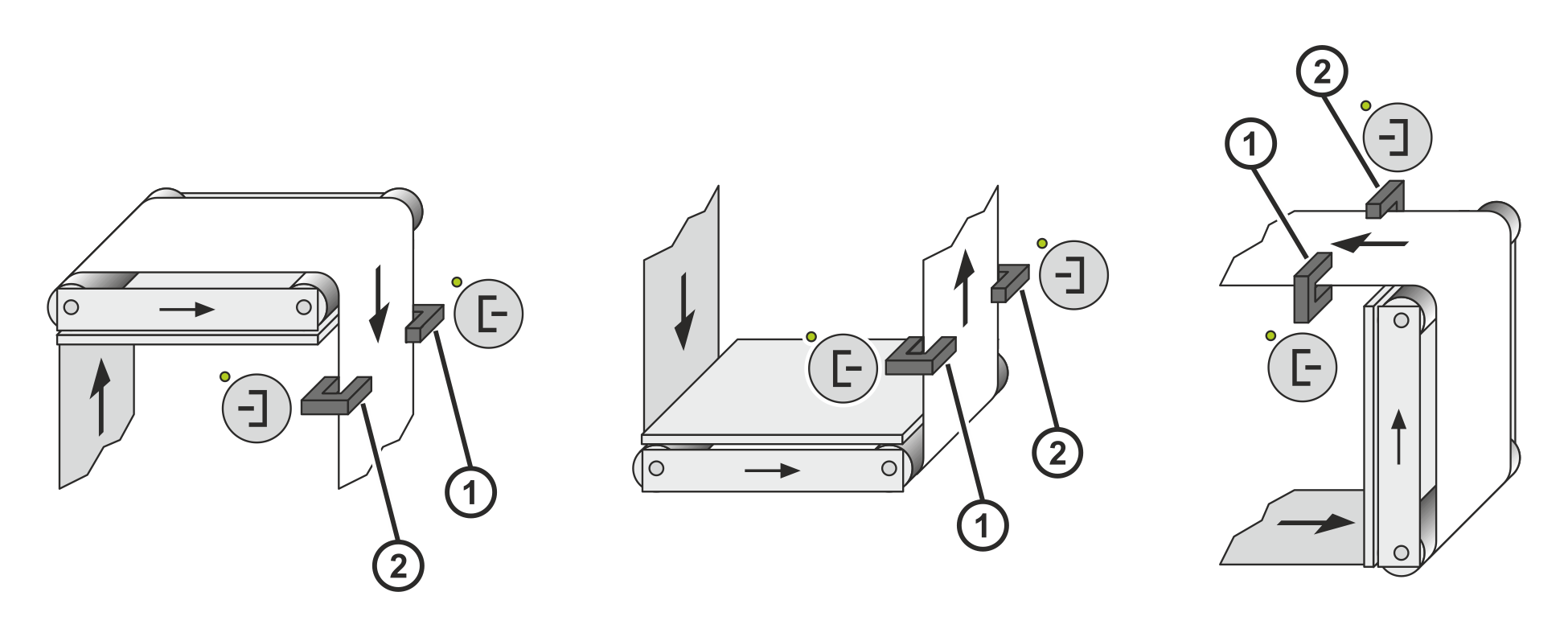

For the installation position of the edge sensors (Sensor 1/2), the following applies:
The sensor that is located on the left of the web in the web running direction (viewed from the top of the material) is Sensor 1.
The top of the material is also the side of the web that has no direct contact with the deflection pulleys of the guiding device.
