Line, Contrast and Object Sensor (Sensor 3)

In conjunction with the CLS Pro 600 line and contrast sensor or the CLS CAM 100 object sensor, the controller permits guiding on continuous or interrupted printed lines or contrast edges or guiding on print features. In this case, the line and contrast sensor or object sensor is connected to the controller as Sensor 3.

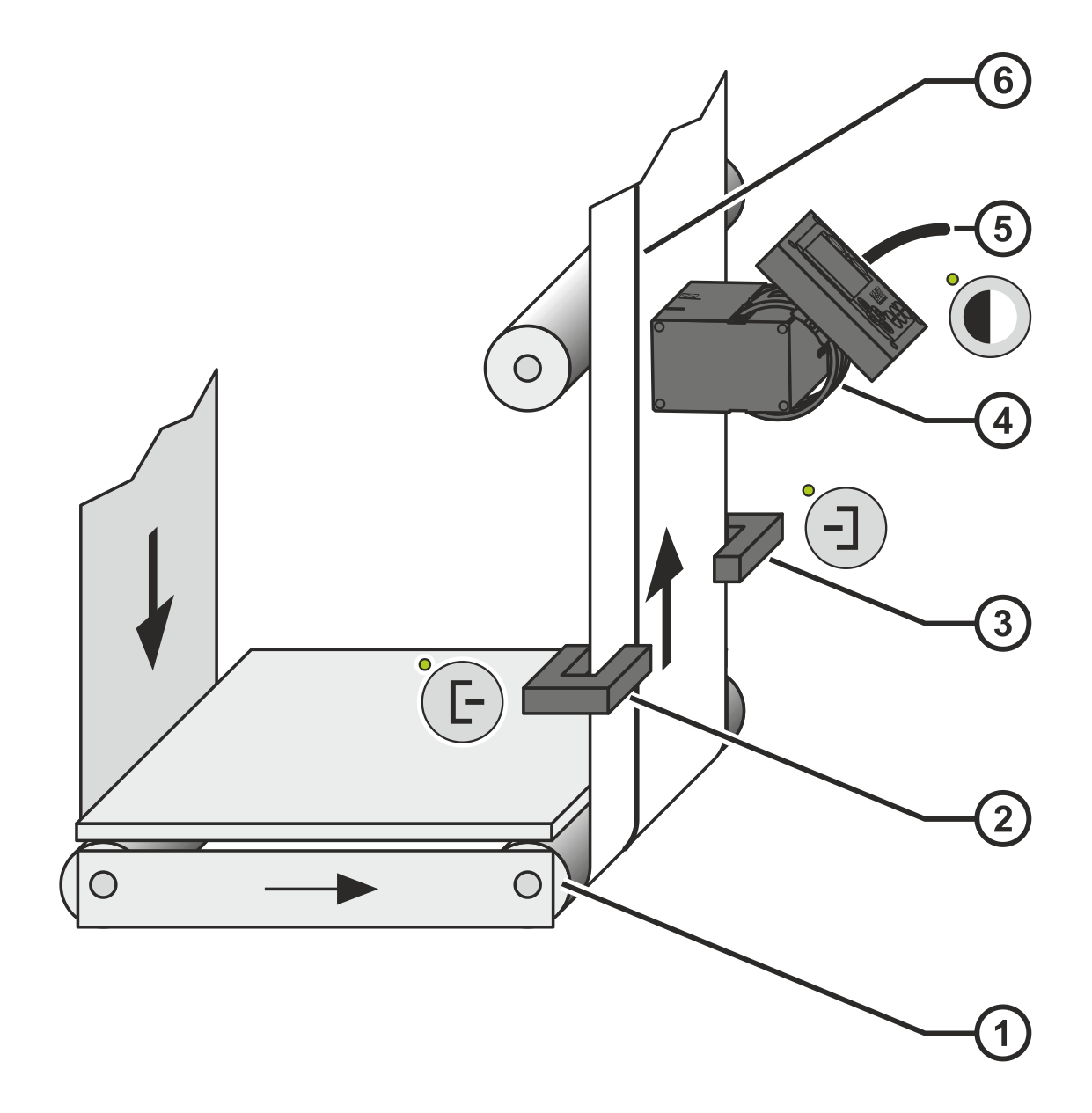

The following applies for the installation position of the line and contrast sensor:

The connecting cable of the line and contrast sensor points in the direction of Sensor 2.

In order to achieve optimum guiding results, the distance between the sensors and the outfeed roll ① of the guiding device must be kept as small as possible.
