Speed-Dependent Guiding
In automatic operating mode, the speed-dependent guiding ensures for an optimum guiding behaviour even at low machine speeds.

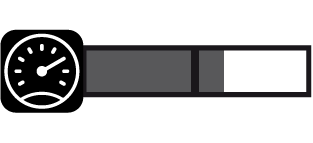

If the speed-dependent guiding is activated, a tachometer symbol appears in the operating display of the actuator. The control of the actuator is limited automatically below an adjustable speed range. This prevents overloading of the controller and oscillation of the guiding device.
① | Characteristic curve for Vel. mV max speed = 10,000 |
② | Characteristic curve for Vel. mV max speed = 5,000 |
With the following parameters of the public parameter list (Parameter list 0), you can adapt the speed-dependent guiding to your individual application.
Function | Parameter | Parameter value | Description |
|---|---|---|---|
Activating the speed-dependent guiding | vel. gain | 0 (OFF) | Function deactivated |
1 (ON) | Function activated | ||
Selecting the source of the speed signal | vel. gain by var | 0 | Analogue input 0 … 10 V |
1 | Take over a value from an internal variable | ||
Determining the starting value of the actuator control limitation | Vel. Start % 0..99 | 0 … 99 % | Factory setting: 20% |
Determining the speed signal at maximum machine speed | Vel. mV max speed | 0 … 10,000 mV | Factory setting: 10,000 mV |
To select the public parameter list (Parameter list 0), see Extended Device Settings.
