IR 2011/40 Operating Modes

The desired operating mode is selected in the setup menu using a special setting menu.

Setting menu for selecting the IR 2011/40 edge sensor operating mode

IR 2011/40 operating modes

Rotate the smartphone by 90 degrees to show the entire table.

Operating Mode	Field of Application	Features	Measuring Range

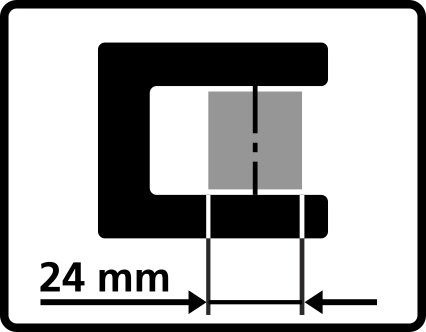

Standard	Scanning of different homogeneous materials (opaque or transparent)	Material setup by user	24 mm (± 12 mm)
Narrow	Scanning of different homogeneous materials (opaque or transparent)	Material setup by user	7 mm (± 3,5 mm)
Auto Setup	Scanning of different homogeneous materials (opaque or transparent)	Continuous sensor calibration due to permanent automatic material setup	20 mm (± 10 mm)
Marginal Perforation	Scanning of material webs with marginal perforation (e.g. continuous forms) Geometry of the marginal perforation:	Reliable compensation of interfering influences of the marginal perforation on the web guiding control Suitable for materials with circular or rectangular tractor feed perforation Scanning of the web edge is independent of the shape and size of the holes. Requirement: The edge distance D of the tractor feed perforation is at least 4 mm.	7 mm (± 3,5 mm)
Nonwoven	Scanning of fleece materials (Nonwoven) with inhomogeneous material structure and strongly varying transparency	Continuous sensor calibration due to permanent automatic material setup Automatic compensation of interfering influences from gaps in the material	24 mm (± 12 mm)
Dynamic	Scanning of material webs with highly dynamic web position errors and high web speeds	Very sensitive guiding behaviour with extremely short response times Sensor measuring value follows any web edge position change without delay	24 mm (± 12 mm)
