Operation Display
The operation displays for the sensor positioner appears only if the FVG POS 100 sensor positioner is connected to the controller.

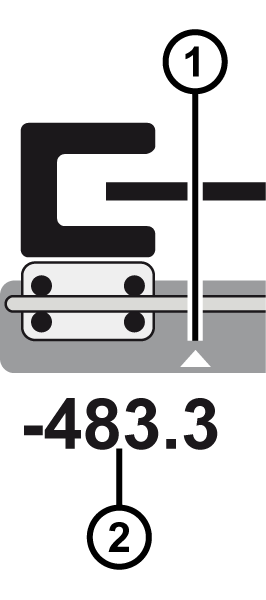

Sensor positioner operation display |
|---|
|
① | The white triangle marks the set position of the web edge in the sensor scanning area. |
② | The numeric value indicates the current position of the web edge in the sensor scanning area (unit [mm] or [inch]) |

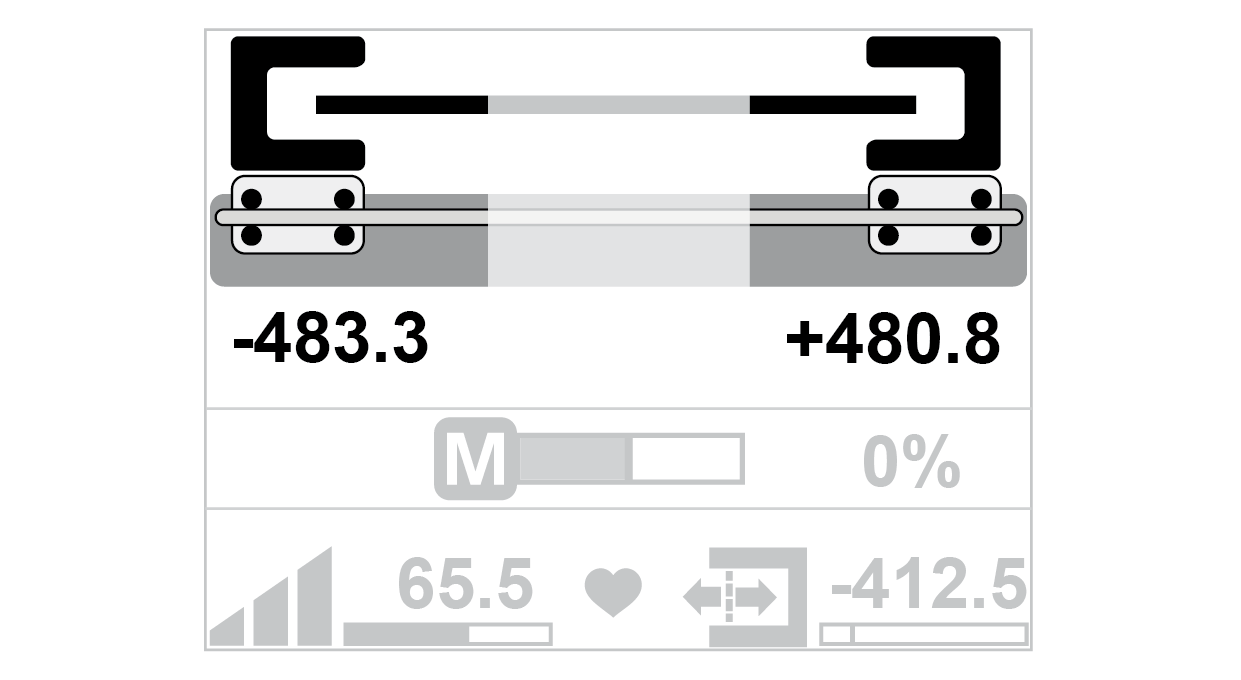

The number of the displayed sensor slide symbols (one or two symbols) depends on the type of the sensor positioner connected.
