Activating the Material Setup

You activate the material setup (manual or automatic) in the setup menu.

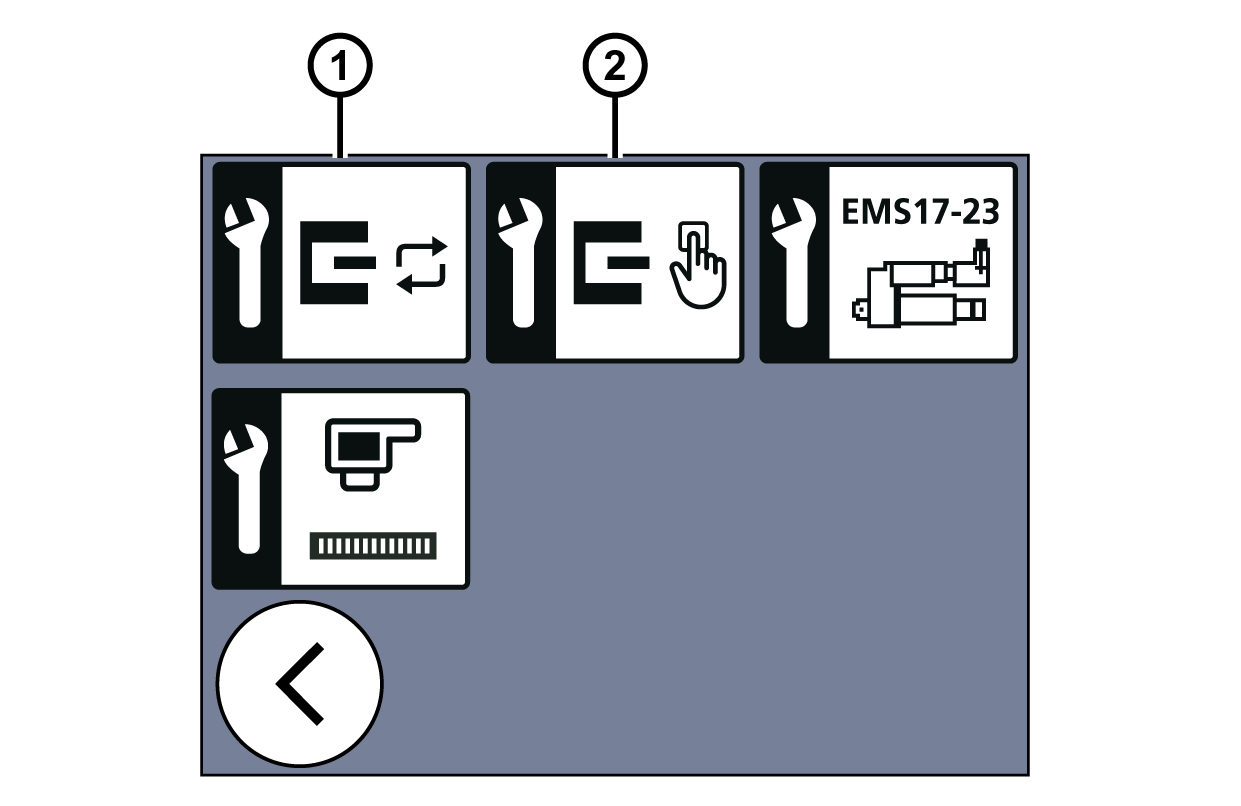

Setup menu

①

Automatic material setup

②

Manual material setup

Activating the material setup

  1. Press the Manual mode key.
  • The LED of the key will illuminate.
  • The controller switches to manual mode.
  1. Press the SETUP key.
  • The controller changes to setup mode.

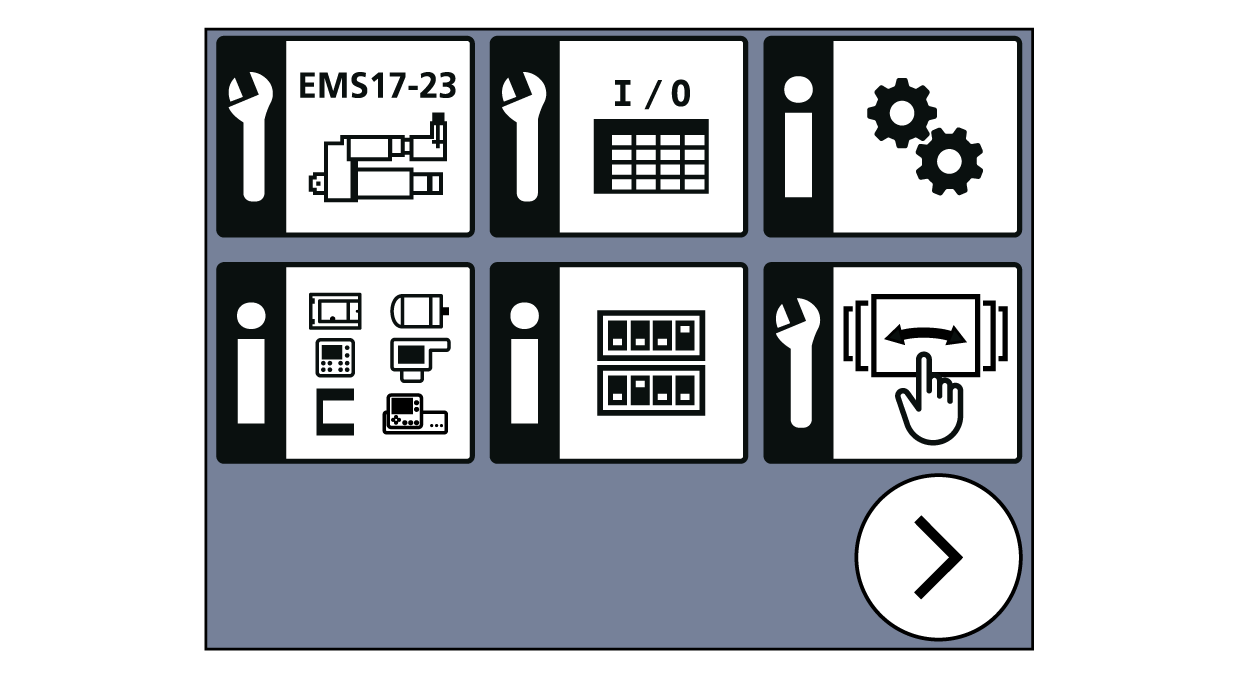

  • The first page of the setup menu will be displayed on the screen.
  1. Tap on the right arrow button on the touchscreen.
  • The screen display changes to the second page of the setup menu.
  1. Press the button for the desired setup type (automatic ① or manual ②).
  • The material setup is active.
  • The bright or dark value determined for the selected sensor is shown in the display under the sensor symbol.
