Nameplates

The nameplates are located on the top of the controller and on the rear of the control panel.

The nameplate displayed is only an example. Please obtain the current data from the nameplate attached to the product.

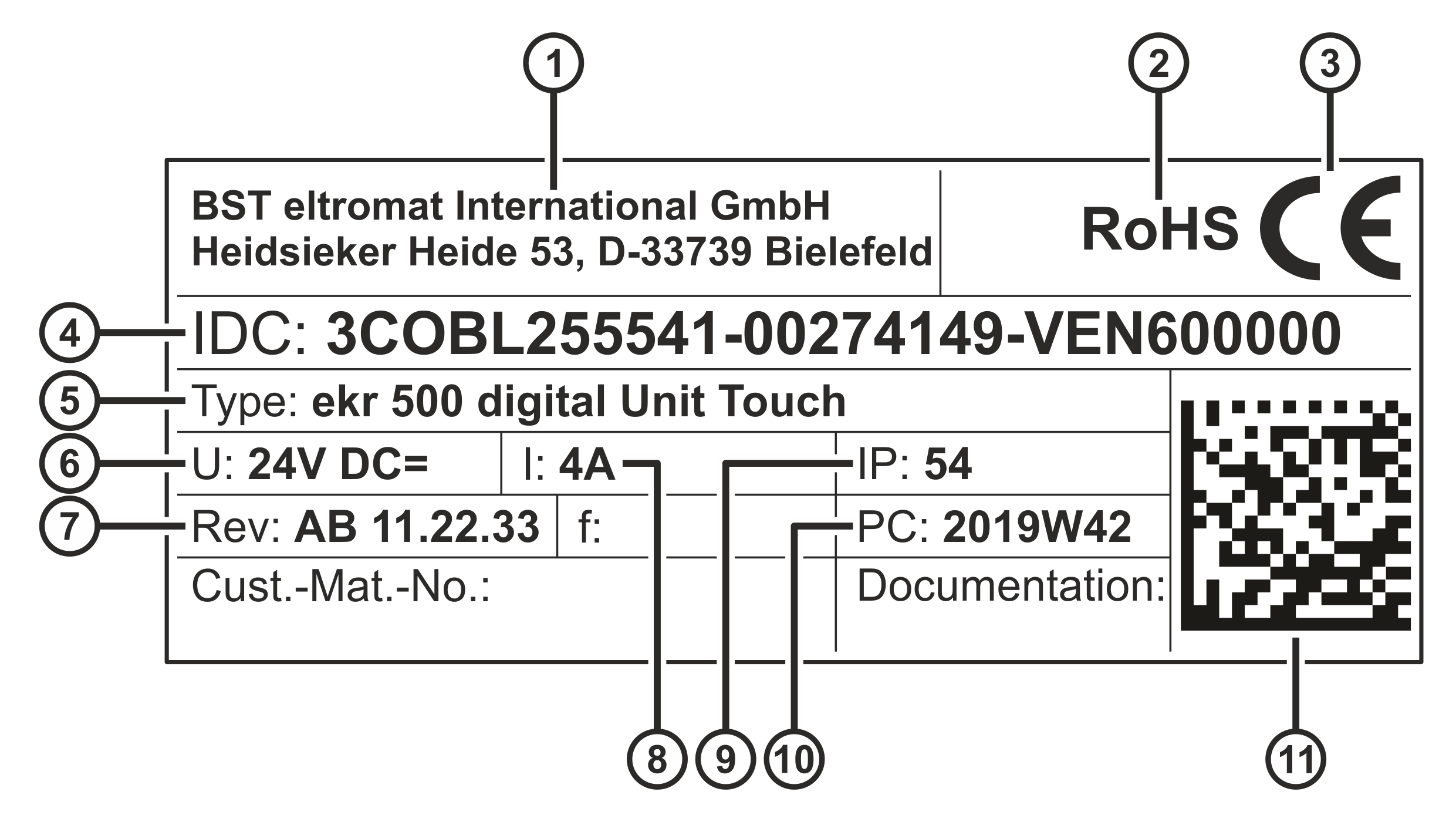

Example of a nameplate
Rotate the smartphone by 90 degrees to show the entire table.

Pos.

Field

Meaning

①

Address

Manufacturer address

②

Certificates

RoHS designation

③

CE designation

④

Code

Data matrix code,
Content = 30 digit serial number (IDC)

⑤

I

Nominal current consumption

⑥

IP

Protection type

⑦

PC

Date of manufacture
(Calendar week / Year)

⑧

U

Operating voltage

⑨

Ver

Hardware version

⑩

Type

Type designation

⑪

IDC

Serial number
