Operation Display

If the Master-Slave guiding is active, the text MASTER appears in the sensor symbol for sensor 1. It indicates that sensor 1 detects the position of the Master web.

The text SLAVE appears in the sensor symbol for sensor 2. It indicates that sensor 2 detects the position of the Slave web. The operating display for sensor 2 is displayed mirrored.

Operation display with edge sensors

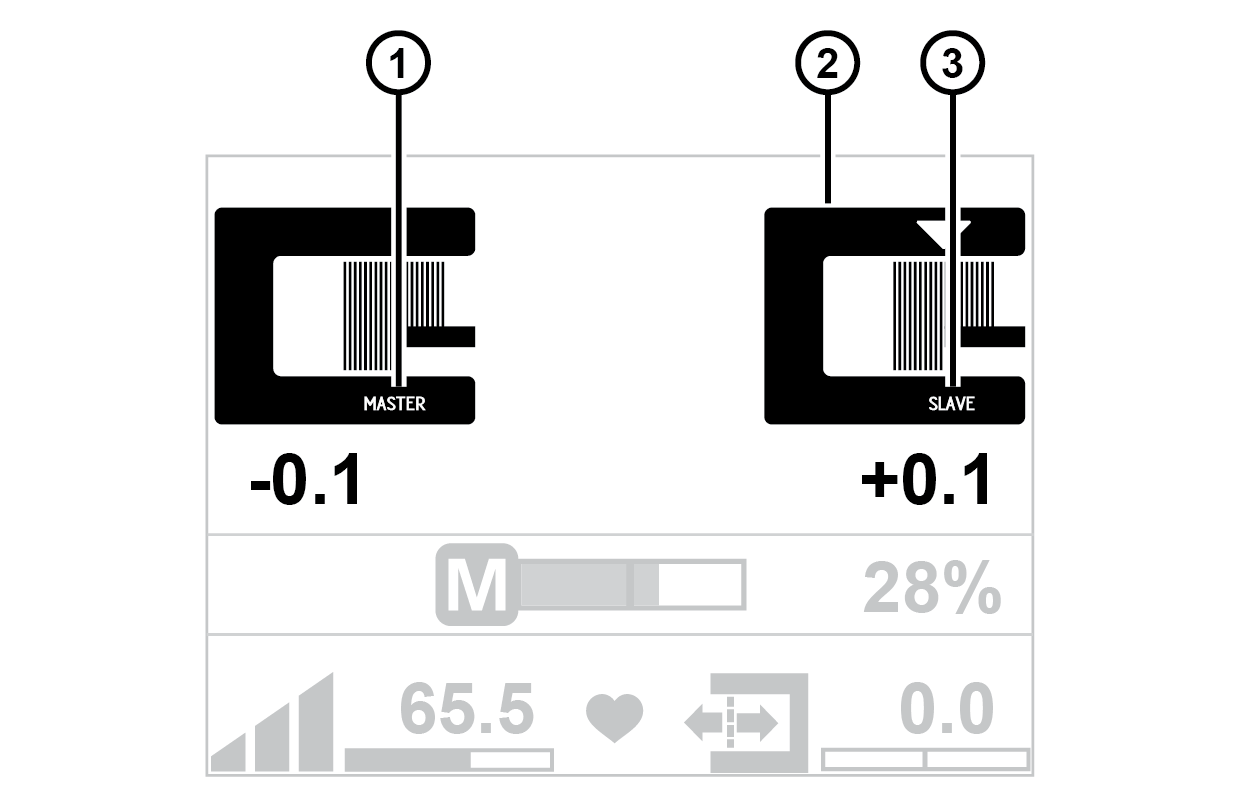

Operation display Master-Slave guiding with edge sensors

①

Text MASTER

②

Operation display Sensor 2 (mirrored)

③

Text SLAVE

Operation display with CCD cameras

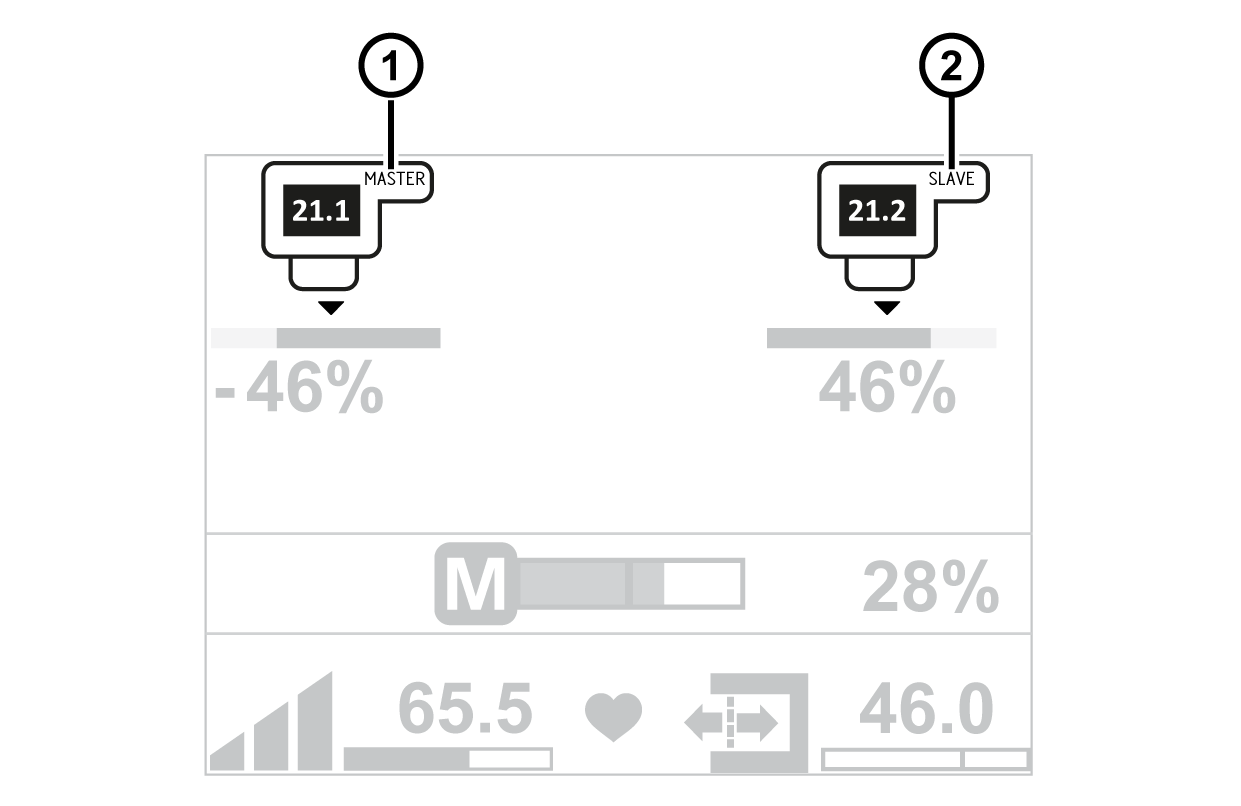

Operation display Master-Slave guiding with CCD cameras

①

Text MASTER

②

Text SLAVE
