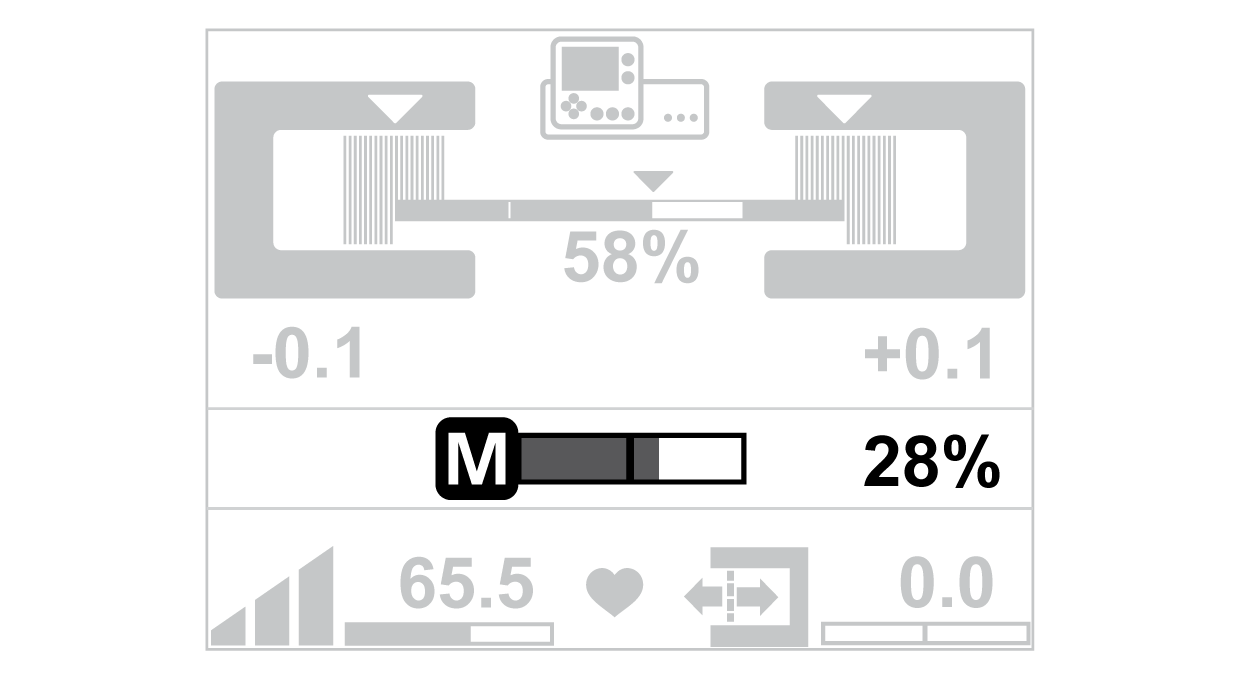

Actuator Operation Display
The operation display for the actuator appears only if an actuator with position feedback or a servo centre transducer (OMG 4, OMG 8, CK 37) is connected to the controller.
Actuator Operation Display |
|---|
|

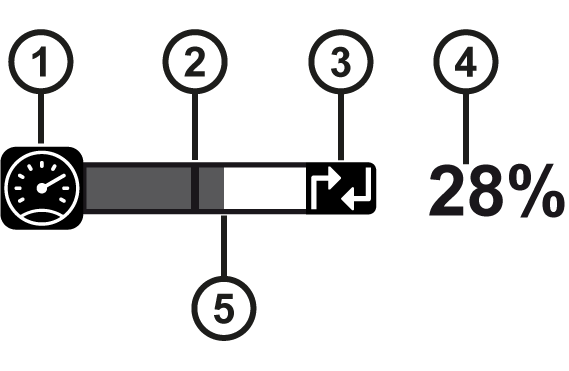

Symbol meanings
① | The tachometer symbol indicates that the speed-dependent guiding is activated. |
② | The black line marks the zero position of the actuator. |
③ | The symbol indicates that the position control for the actuator is switched on. |
④ | The value specifies the relative position of the actuator in relation to the end positions. |
⑤ | The grey bar marks the current position of the actuator. |
