Calibrating the Line Width Measurement

Using this function you calibrate the line width measurement.

For the calibration, introduce a printed line with a known width (reference line) into the measuring range of the CLS Pro 600 line and contrast sensor connected and determine the line width as reference width.

  1. Select the line/contrast guiding mode (Sensor 3).
  1. Introduce the printed line into the measuring range of the line and contrast sensor.
  1. Carry out a line setup at the line and contrast sensor (procedure see separate operating manual CLS Pro 600 line and contrast sensor, document number MD.323).

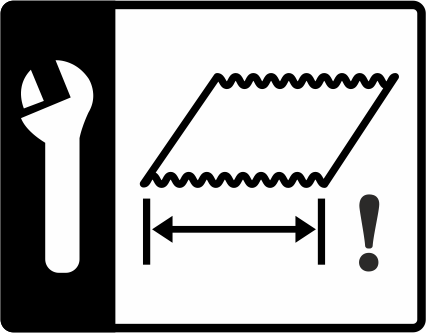

  1. Call up the Width Measurement Calibration menu in the setup menu (see Calling up the Setup Menu).

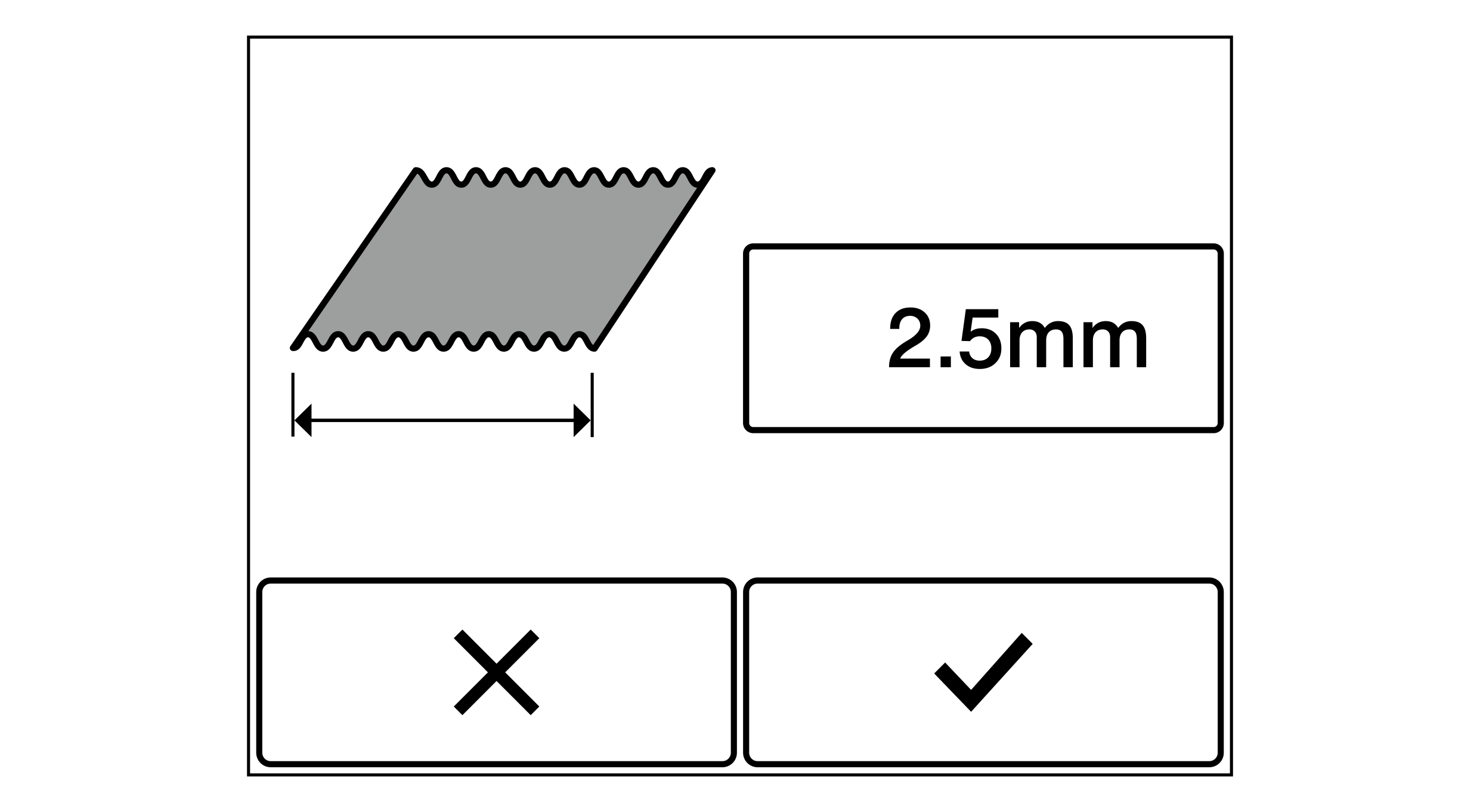

  • The adjacent window for the input of the reference width is displayed.
  • The currently set reference width is displayed in the editing field in [mm] or [inch] (2.5 mm in the example).
  1. Enter the width of the reference line into the editing field.

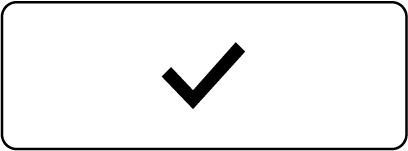

  1. Confirm your entry with the button.
  • The set reference width will be accepted.
  • The calibration of the line width measurement is finnished.
  • The reference width entered is shown as line width in the display.
