Displaying System Information

This service display shows the hardware, firmware and bootloader versions installed in the controller and the ekr commander control panel.

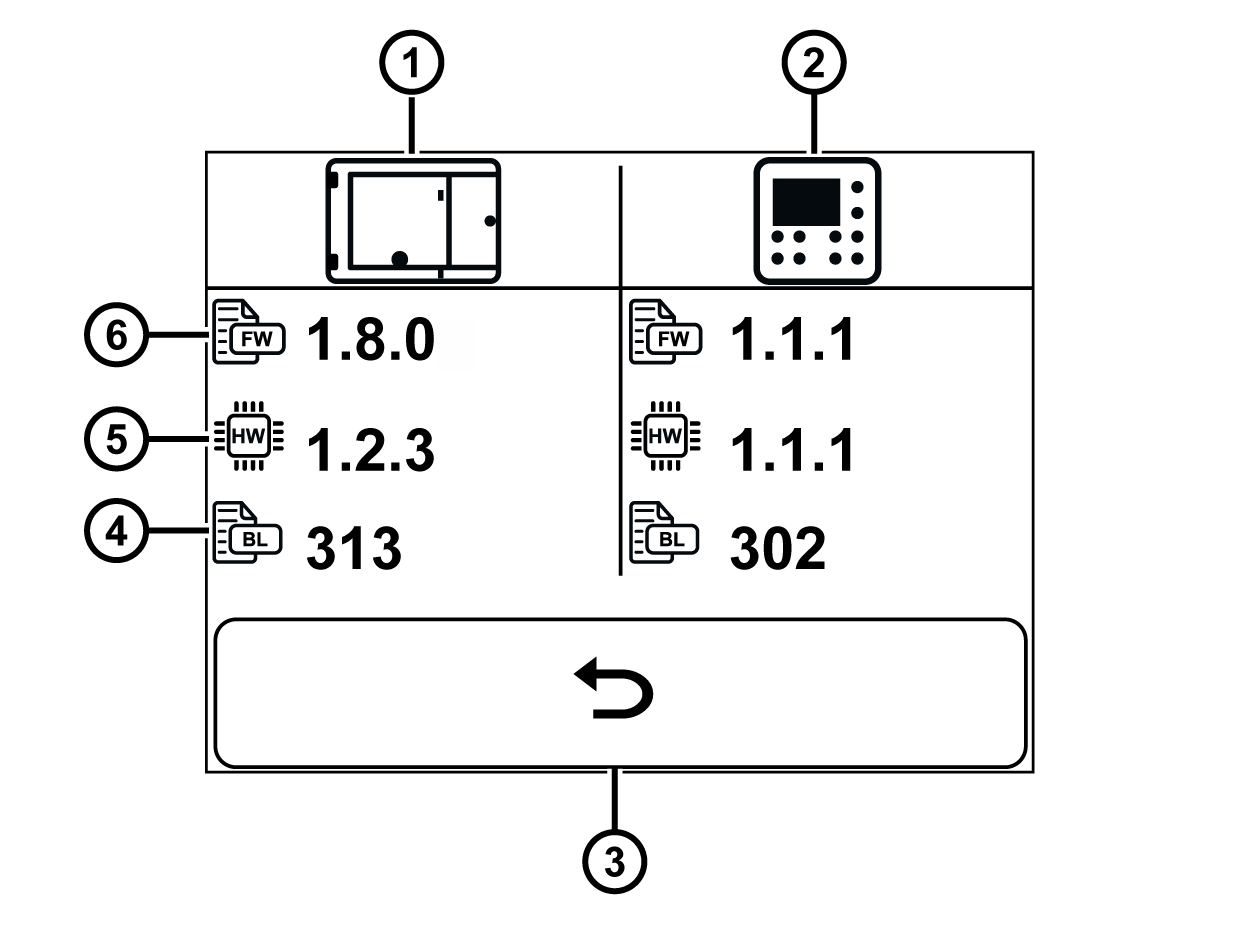

Display of the system information (example)
Rotate the smartphone by 90 degrees to show the entire table.

①

controller

④

Bootloader version

②

ekr commander control panel

⑤

Hardware version

③

Enter button

⑥

Firmware version

If you have a service query for our customer services, please have the installed hardware and firmware versions to hand.

Calling up the service display

  1. Activate the service display System information in the setup menu (see Calling up the Setup Menu).
  • The hardware, firmware and bootloader versions installed for the controller and control panel are shown in the display.
  1. Press the button to quit the service display.
  • The setup menu is displayed.
