Space Needed to Open the Housing Cover

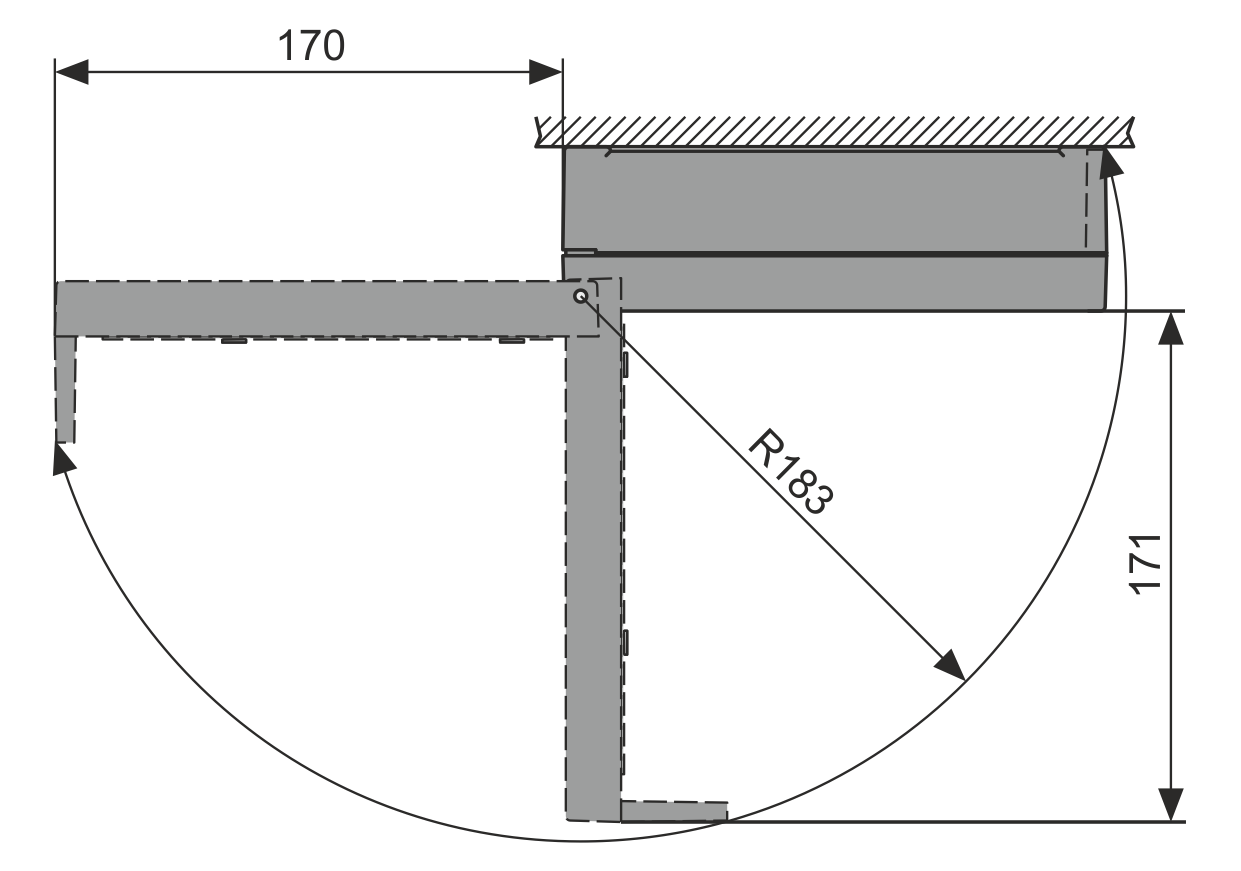

The figure shows the free space around the housing of the controller that is needed to open the housing cover completely.

Space needed to open the housing cover
