Processor Board

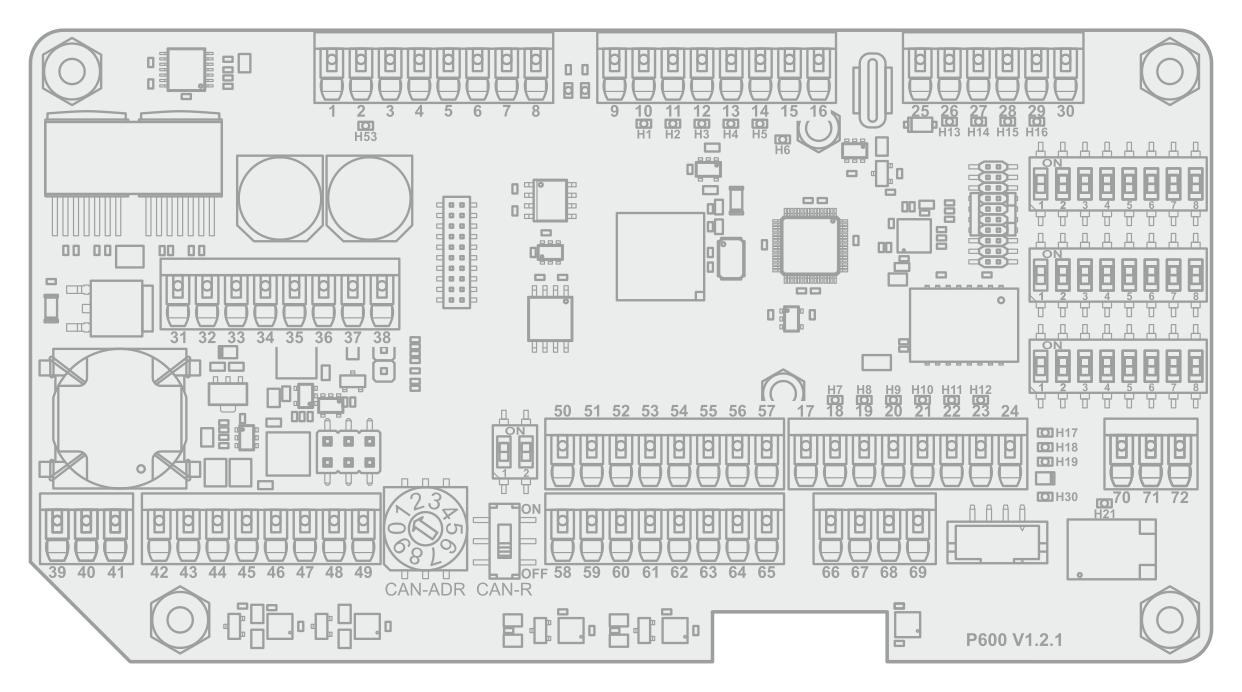

Both versions of the controller (ekr CON 600 and ekr CON 600 net) have an identical processor board inside the housing.
The ekr CON 600 net controller has an additional interface board located above the processor board. The design of this board depends on the interface module used.
Rotate the smartphone by 90 degrees to show the entire table.
1 | Interface board (example) |
|
|
You will find a description of the plugs and service LEDs on the interface board in the separate documents for the different interface modules (see More Detailed Information).
