Overview

Rotate the smartphone by 90 degrees to show the entire table.

Terminal strip
(Processor board)

Socket
(Housing)

Function

Note

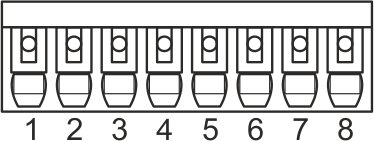

X1



Connection sensor 1 (analogue)

Guiding mode

Connection sensor 2 (analogue)

Guiding mode

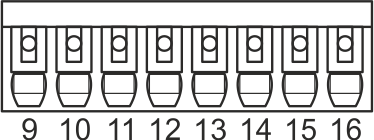

X6

X70

Power supply 24 V⎓

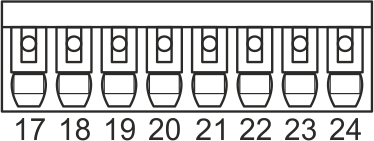

X7

X60

Connection actuator



Position feedback actuator
(EMS 17 … 22)



Connection servo center transducer OMG 4



X8

X102

Connection sensor 1 (CAN bus)

Guiding mode

X103

Connection sensor 2 (CAN bus)

Guiding mode

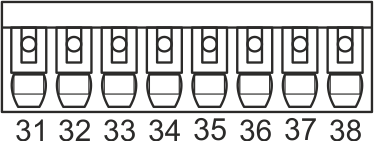

X9

X100

Connection ekr commander control panel



X101

Connection Drive Module 160
(external output stage for actuator EMS 23)



Connection EMS DRV 400 actuator



Connection Sensor 3
(CLS Pro 600 or CLS CAM 100)

Guiding mode

Connection additional ekr commander control panel



Connection BTL5 linear position sensor



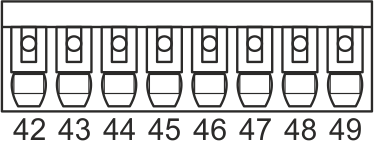

X10



Connection servo center transducer
OMG 4, OMG 8, CK 37



Connection electronic remote precision adjustment EFE 1



Controller interlock



X11



Message output “System OK”



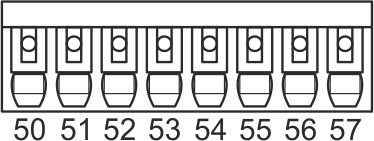

X12

X104*

CAN bus extension



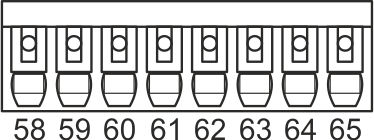

X14



Digital inputs 1 … 6

Remote control,
electronic remote precision adjustment EFE 1000

X15



Digital inputs 7 … 12

X16



Digital outputs 1 … 4



X42





Programing interface (USB Type C)

Programming in the factory

* The X104 connector socket is only available for the ekr CON 600 controller. The ekr CON 600 net controller is equipped with a cable gland at this position.
