Transport

WARNING
Danger of death and material damage caused by incorrect transportation!

Death and crushing from goods being transported falling.

  • ▶The lifting gear must not be fixed on the handles.
  • ▶Never stand under the suspended goods being transported.
  • ▶Never stand in the area of movement of the goods being transported.
  • ▶Transport to be carried out by qualified and trained personnel only.
CAUTION
Risk of injury from carrying weight being too high!
  • ▶Lift maximum 15 kg (females) or 25 kg (males) per person.
  • ▶Use handles.

The following personal protective equipment is required for transporting:

  • Safety gloves
  • Safety shoes
  • Safety helmet when using lifting gear
  • ▶Observe the applicable guidelines (e.g. accident prevention regulations).
  • ▶Wear personal protective equipment.
  • ▶Use only suitable lifting gear (e.g. lifting straps, chains) and lifting devices according to the type and weight of the goods to be transported.

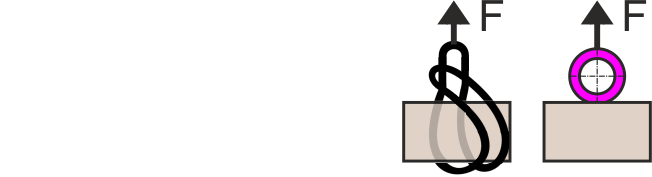

  • ▶Attach the lifting gear only at the intended fixing points and only when using suitable slings. Lifting gears must not be fixed on handles.

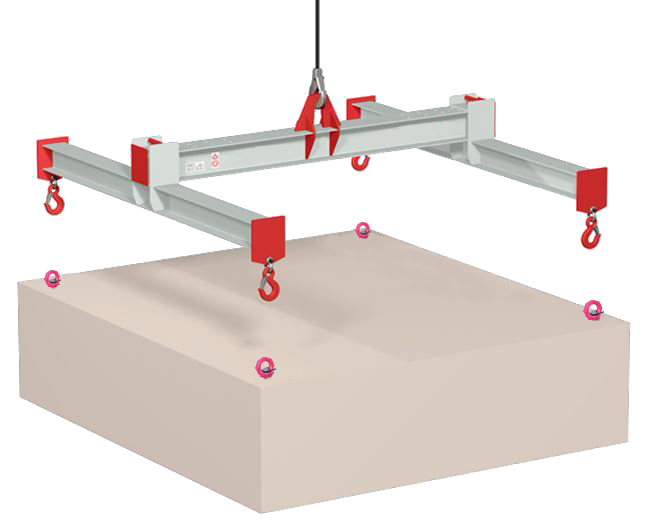

  • ▶Attach the lifting gear in such a way that the lifting force at the fixing point only operates in a vertical direction. If necessary, use a lifting device with a cross beam, see figure.

  • ▶Secure the bearing ropes so that they cannot slip.
  • ▶Transport the system components only in the original packaging and in the position marked on the packaging.
  • ▶If transport restraints have been supplied, always transport the system components using transport restraints.
  • ▶Secure the goods to be transported on the transport device so that they cannot slip, fall-over, knock or fall down, e.g. using lashing straps and edge protectors.
  • ▶Lift and put the transport goods down carefully.
