Displaying the determined bright / dark values

The bright / dark value determined is displayed graphically (bar indicator) and as a numeric value in the display under the sensor symbol.

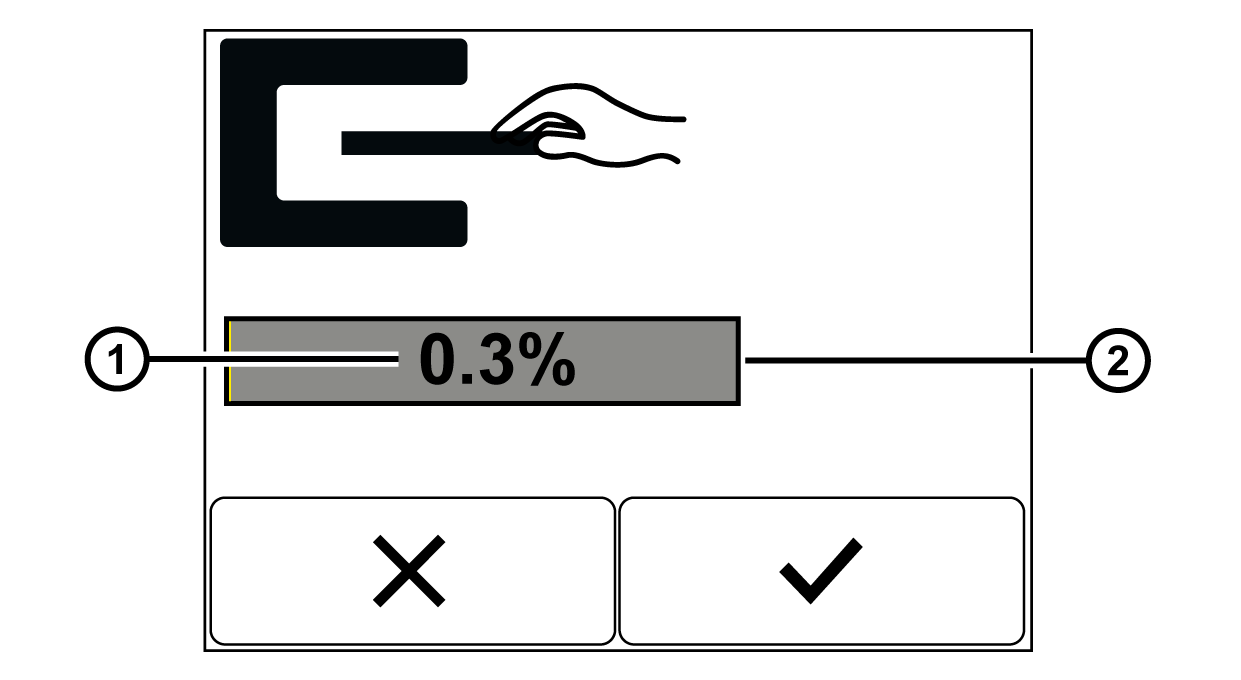

Screen display with the connection of the sensor via CAN bus

①

Bright / dark value (numeric display)
100.0% = scanning area is completely free
0.0% = scanning area is completely covered

②

Bright / dark value (graphical display)

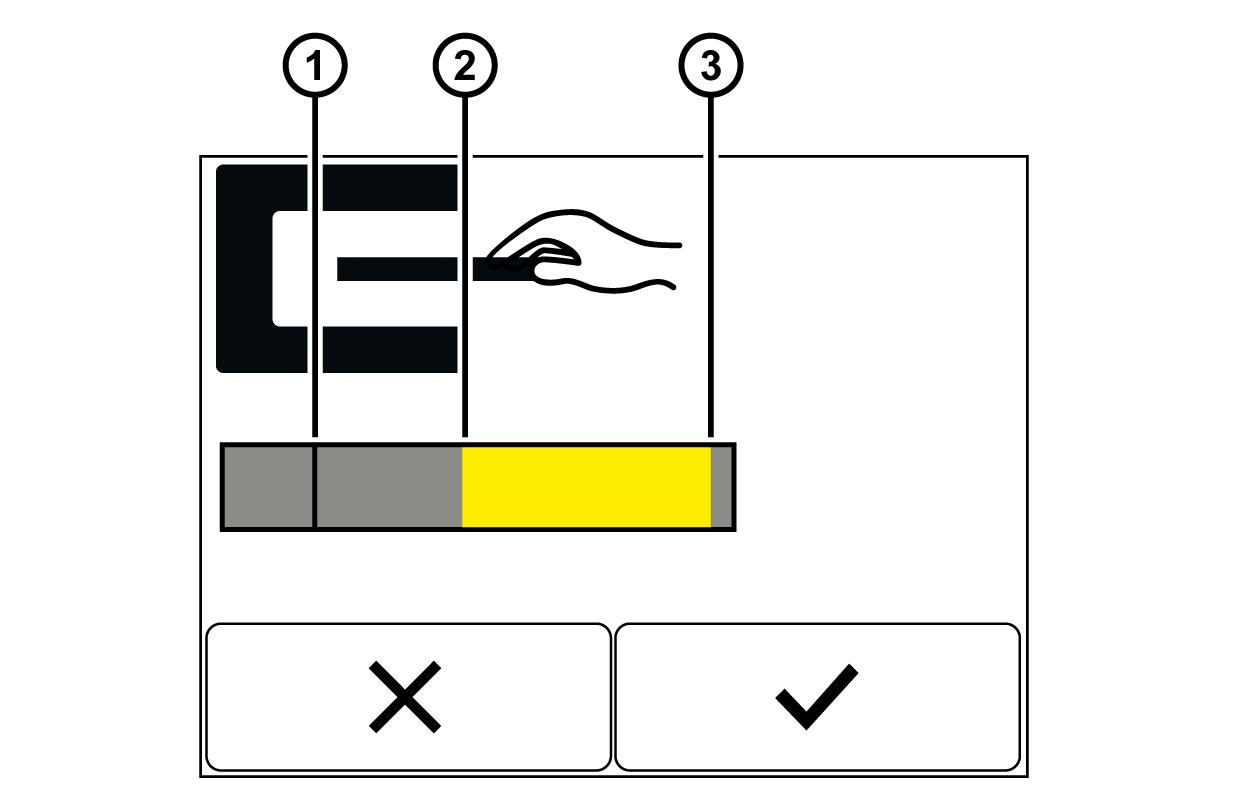

Screen display with analogue connection of the sensor

①

Dark value (graphical display)

②

Current value (graphical display)

③

Bright value (graphical display)



Each screen display for the connection of the sensor via CAN bus is shown in the following chapters.
