Manual Material Setup

This chapter describes the procedure for saving the bright / dark values with critical contrasts.

You have to perform the material setup for each edge sensor (sensor 1, sensor 2) separately.
  1. Remove any material that may be present from the connected edge sensors and clean the sensor scanning areas.

  1. Select the desired sensor by pressing the respective key Sensor 1 or Sensor 2.
  • The LED of the key will illuminate.

  1. Activate the manual material setup (see Activating the Material Setup).

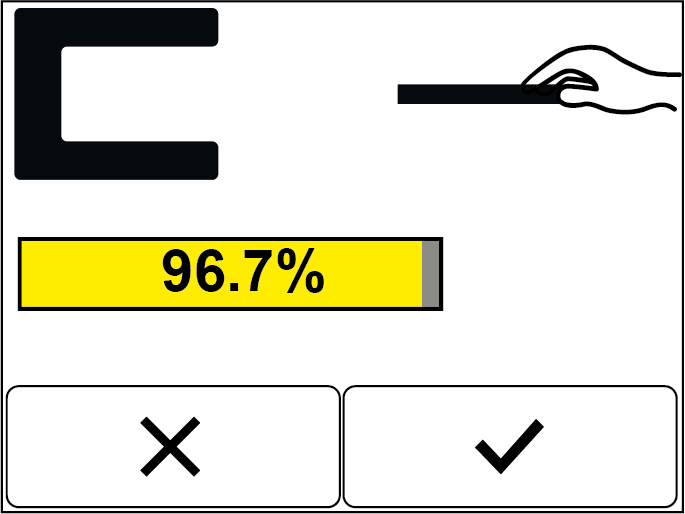

  • The screen display shows the operating step necessary for generating the bright value for the selected sensor (Sensor 1 here).

  1. Completely clear the selected sensor's scanning area (no material in the scanning area).
  • The bright value measured is displayed.

  1. Press the button.
  • The bright value will be saved.

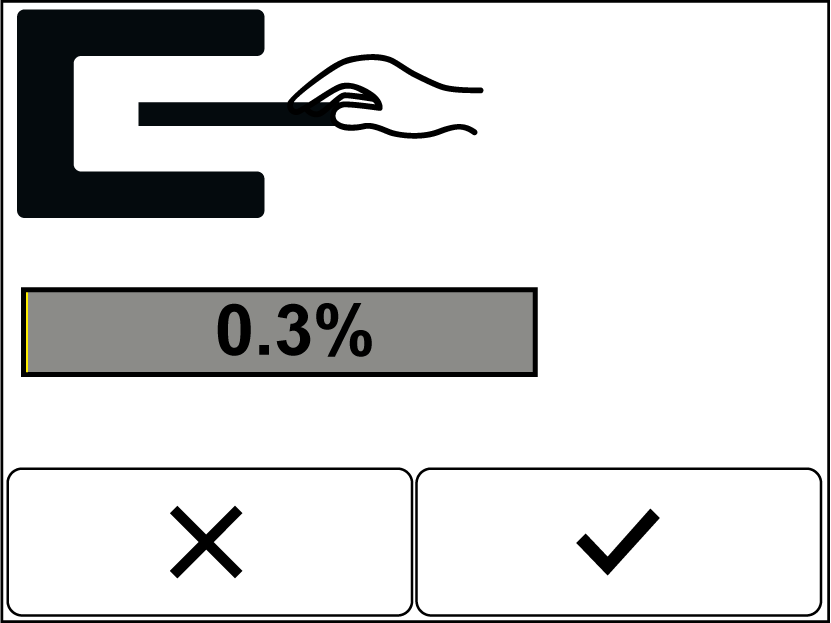

  • The screen display shows the operating step necessary for generating the dark value for the selected sensor (Sensor 1 here).

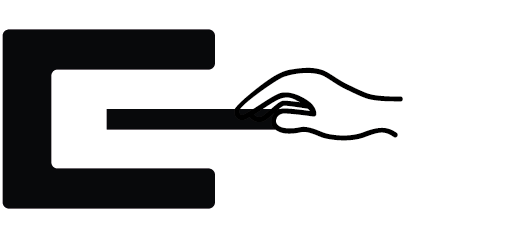

  1. Completely cover the scanning area of the selected sensor with the material to be scanned and keep it covered.
  • The dark value measured is displayed.

  1. Press the button.
  • The dark value will be saved.
  • The material setup for the selected sensor is completed.
  • The setup menu is displayed.
