The Watchdog function is only available in conjunction with the web edge guiding. The Watchdog cannot be switched on if the web center-line guiding is active.
WARNING
Danger of death from actuator movements!
Parts of your body could be crushed, cut or hit.
▶Make sure that no persons remain in the vicinity of the pivot / traversing area of machine components that are positioned by the actuator.
»The web edge guiding is selected as guiding mode (guiding to the left or right web edge).
Position the CLS Pro 600 line and contact sensor or the CLS CAM 100 object sensor on the printed line, contrast transition or print feature.
Press the Sensor 3 key on the controller.
The LED of the key illuminates.
The line / contrast / feature guiding is activated.
Press the Automatic key on the controller.
The LED of the key illuminates.
The controller switches to automatic mode.
Press both arrow keys on the controller at the same time. The guiding setpoint for sensor 3 is reset to the value 0. If the optional electronic remote precision adjustment EFE 1 is connected to the controller then the guiding setpoint must be set to the value 0 using the potentiometer of the EFE 1 (see EFE 1).
Move the web to the desired guiding setpoint (by moving the CLS Pro 600 line and contrast sensor or the CLS CAM 100 object sensor mechanically across the web running direction).
Position the capture sensor so that the web edge is located in the centre of the sensor scanning area.

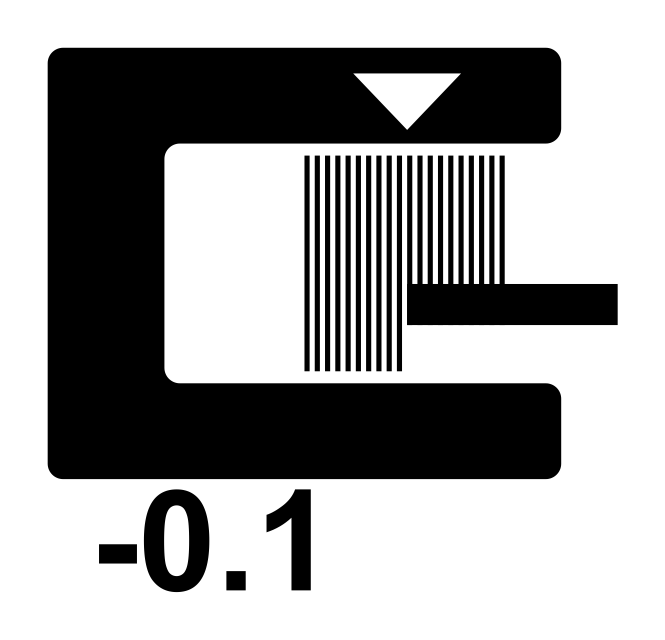

The current position of the web edge in the sensor scanning area is shown in the display of the controller under the respective sensor symbol.
Press the Sensor 3 key on the controller and keep it pressed.
The LED of the key illuminates.
Press the key for the capture sensor used (Sensor 1 or Sensor 2).
First release the Sensor 3 key and then the key for the capture sensor used (Sensor 1 or Sensor 2).
Caution! Observe the order in all cases!
The LED of the capture sensor key illuminates.
The Watchdog function is switched on.
If the capture sensor takes over the guiding in event of losing the printed line, contrast transition or print feature then the LED of the respective key (Sensor 1 or Sensor 2) flashes.
