Editing the Parameter Value

  • »The controller is in the Manual operating mode.
  1. Activate the Switch positions service display (see Displaying Switch Positions).

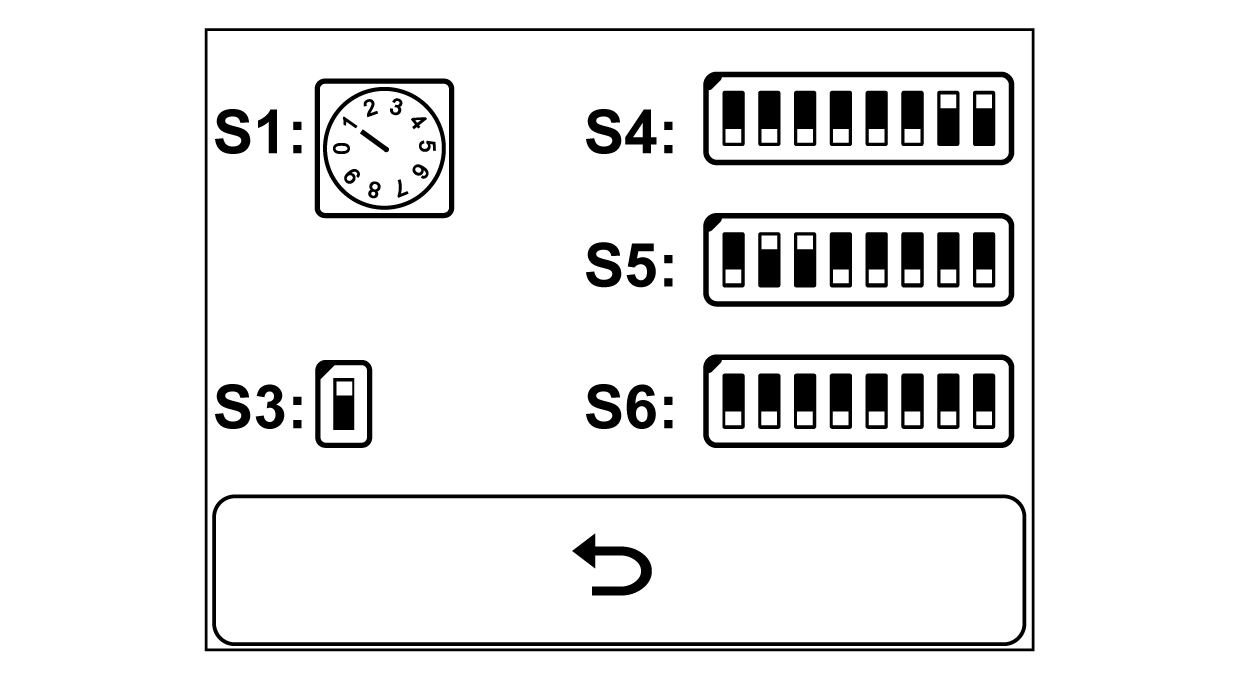

Switch positions service display

  1. Press the Sensor 3 key.
  • The selection menu for the public parameter lists appears in the display. The currently selected parameter list is displayed in the editing field.

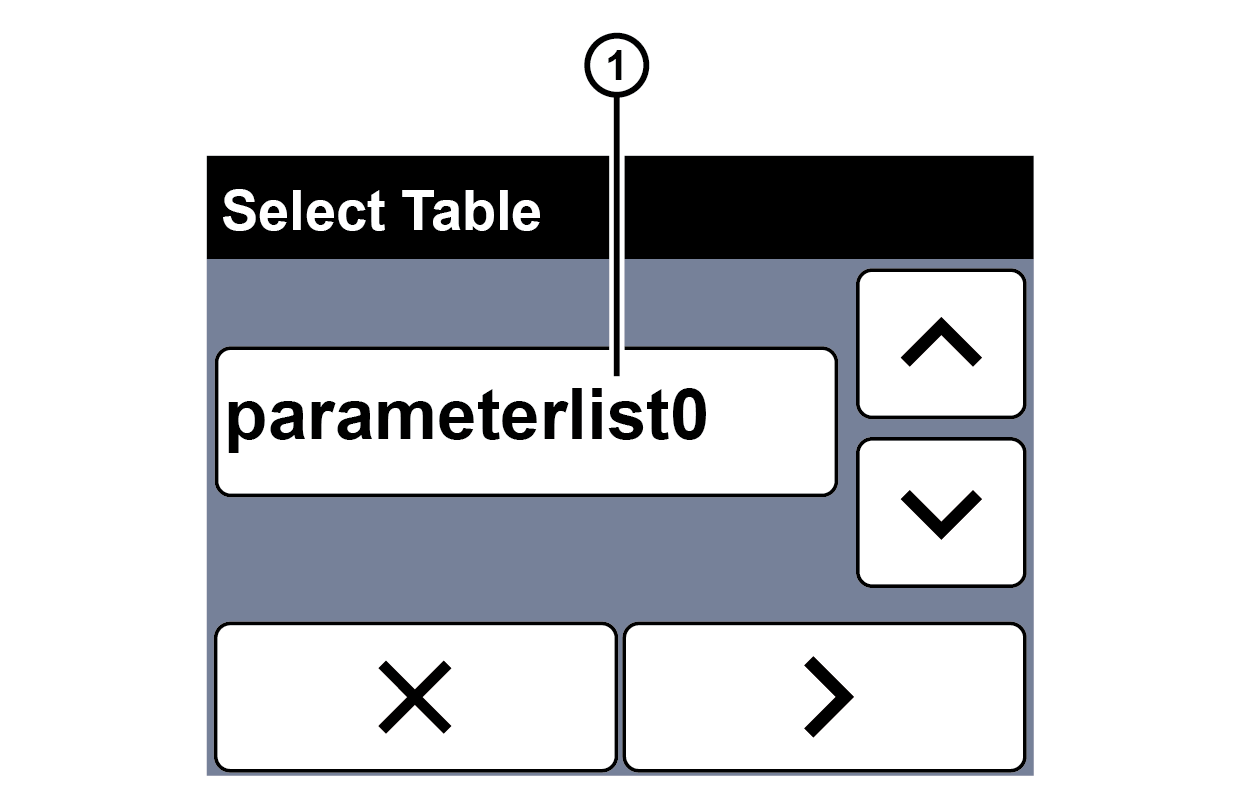

Selecting the parameter list

①

Parameter list selected

  1. Select the desired parameter list using the arrow buttons on the right side of the display.

  1. Press the > button.
  • The first parameter of the parameter list selected appears in the display.

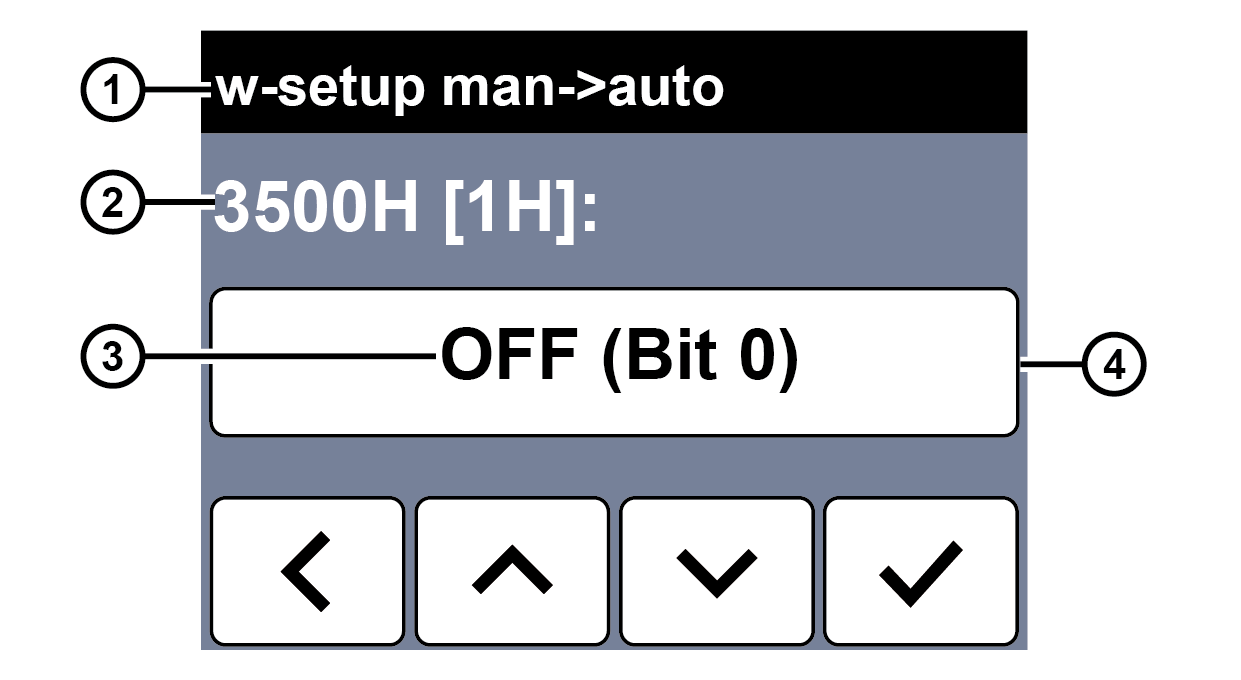

Edit the parameter value
Rotate the smartphone by 90 degrees to show the entire table.

①

Parameter designation

②

Parameter index

③

Parameter value

④

Editing field

  1. Select the desired parameter using the arrow buttons.
  1. Tap the editing field on the touchscreen to change the parameter value.
  • An input keypad appears in the display.
  1. Enter the desired parameter value.
  1. Press the button to confirm the entry.
  • The input keypad is closed.
  • The edited parameter value is entered into the editing field.
  1. Press the button to save the edited parameter values.
  • The Switch positions service display is displayed.
