CCD Cameras Operation Display

The operation display for the CCD cameras appear only when the respective CCD cameras with the correct CAN address are connected to the controller.

One-camera system

One-camera system operation display

CAN address camera 1 = 21

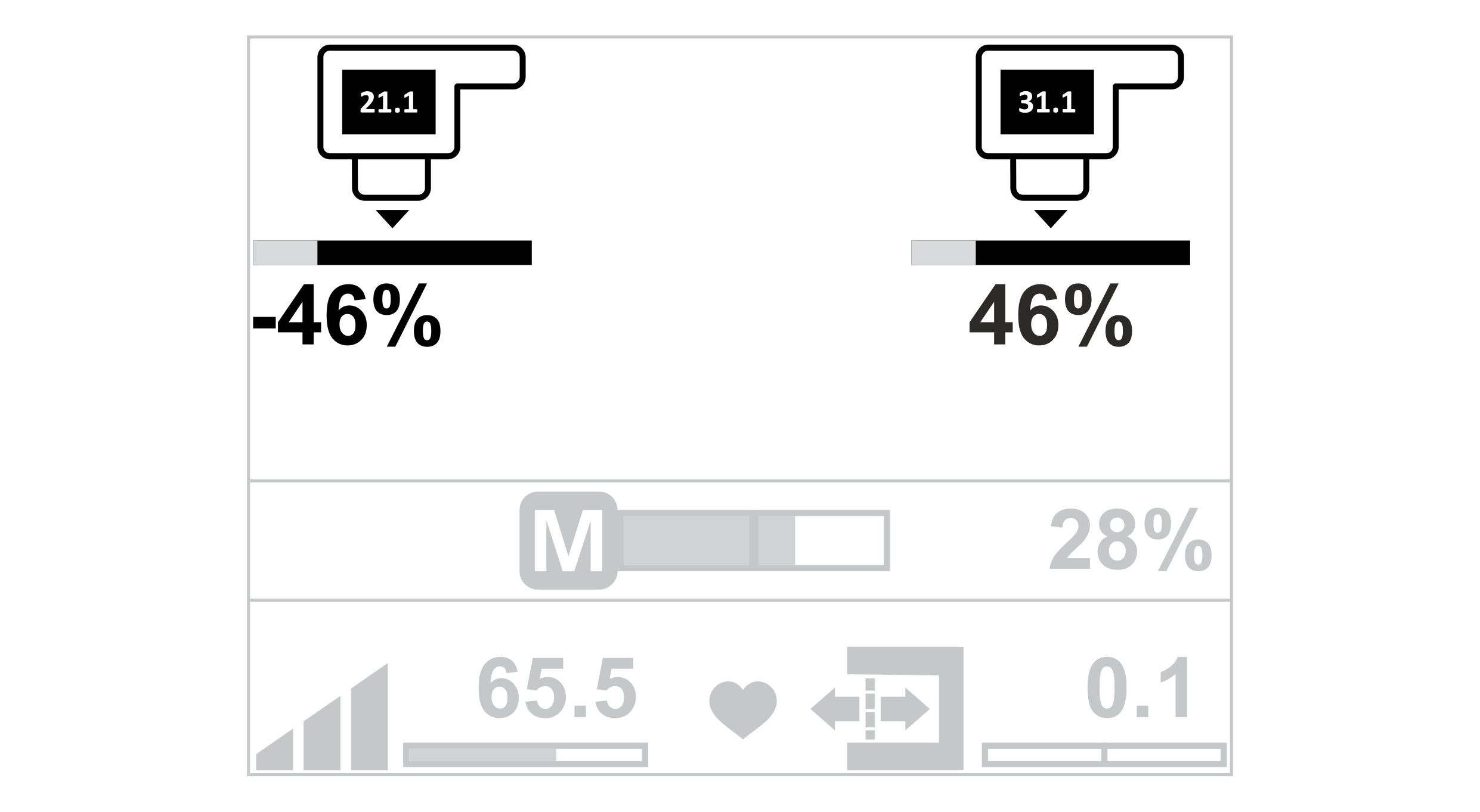

Two-camera system operation display

CAN address camera 1 = 21

CAN address camera 2 = 31

Adjustment of the CAN address of the CCD camera(s), see separate instruction manual.

CCD Camera	Instruction Manual (Document Number)
CCDPro 30000/5000	MD.167
CCD CAM 100	MD.465

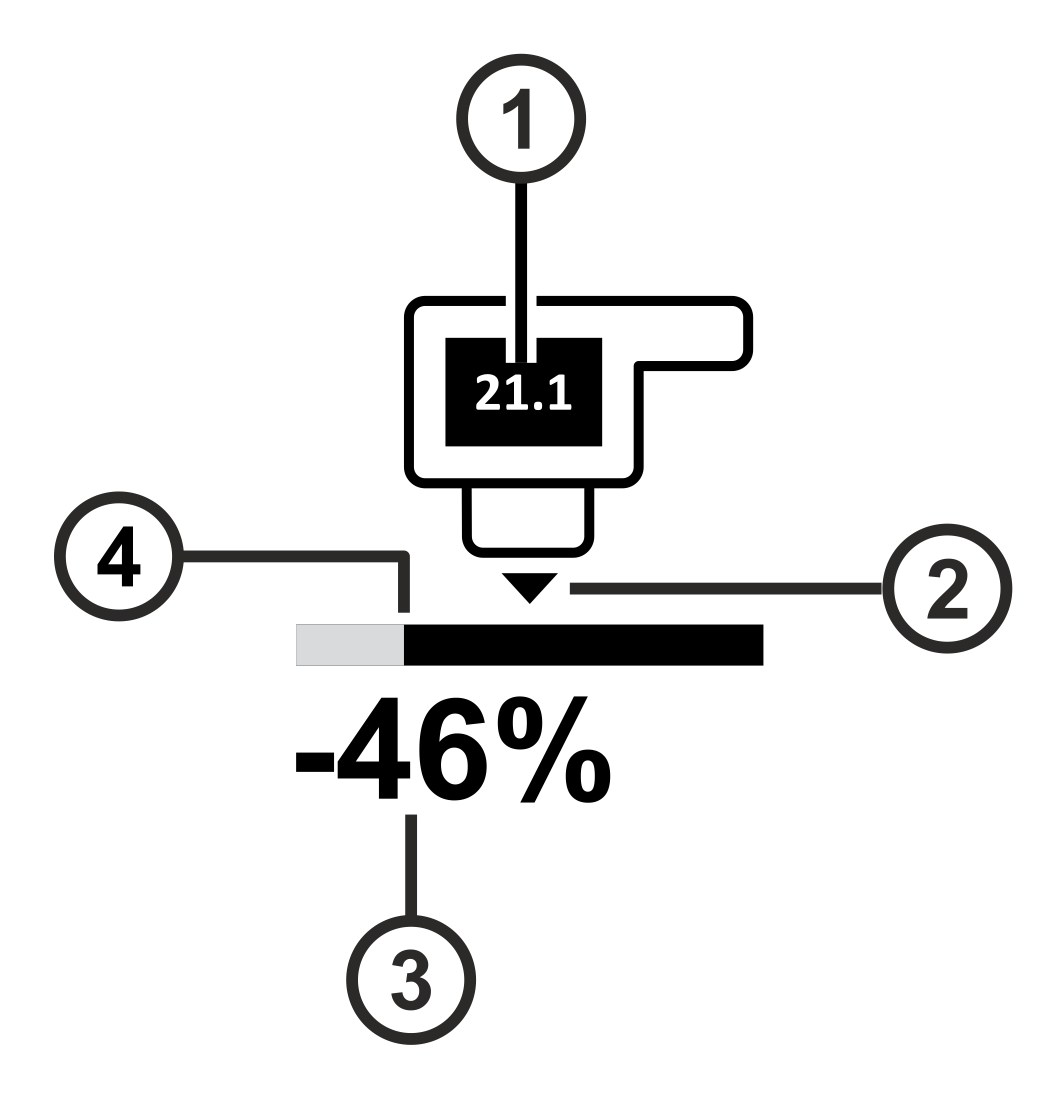

CCD camera operation display

①	CAN address of the assigned CCD camera One-camera system: 21 Dual-camera system: camera 1 = 21, camera 2 = 31 (see CCD Cameras (Sensor 1/2))
②	The triangle marks the guiding setpoint.
③	The value specifies the web edge position as a percentage or absolute value (see Display of the Web Edge Position).
④	The contrast transition (white / black) marks the actual position of the web edge.
