Display of the Web Edge Position
The web edge position is displayed as a percentage or absolute value dependent on the type (CCDPro5000/30000 or CCD CAM 100) and the operating mode of the CCD camera connected.
CCD camera CCDPro 5000/30000
On this type of CCD camera the web edge position is always displayed as a percentage value.
Display of the web edge position as percentage value |
|---|
Relative position of the web edge with regard to the camera measuring range |
Examples:

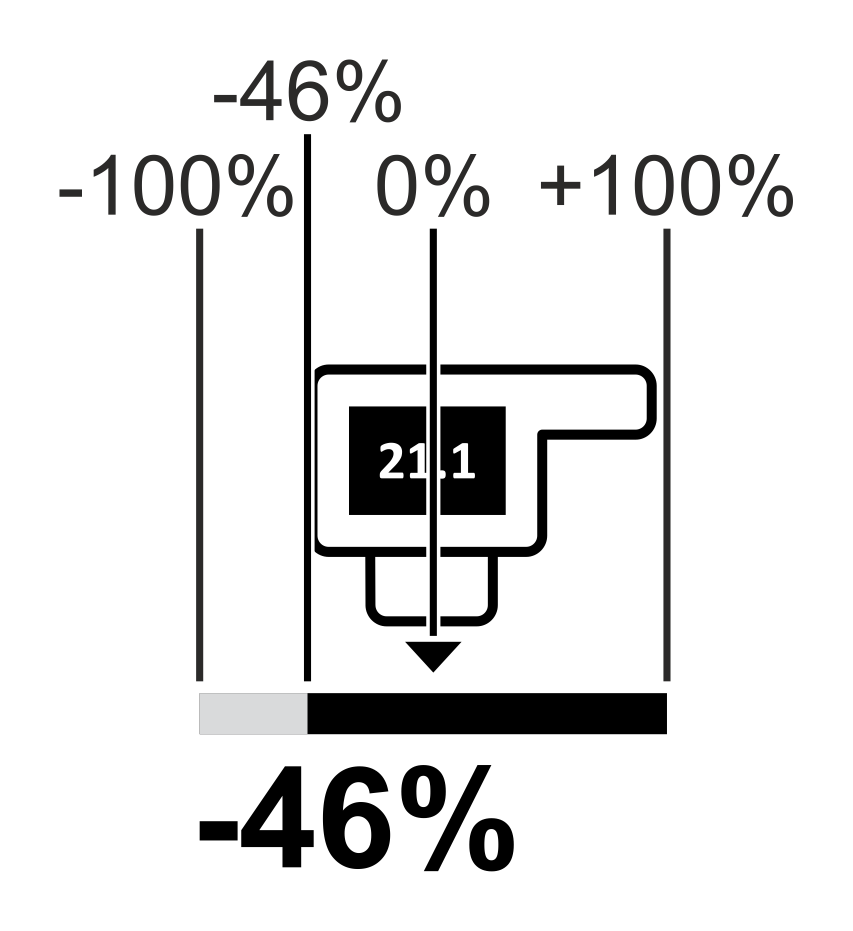

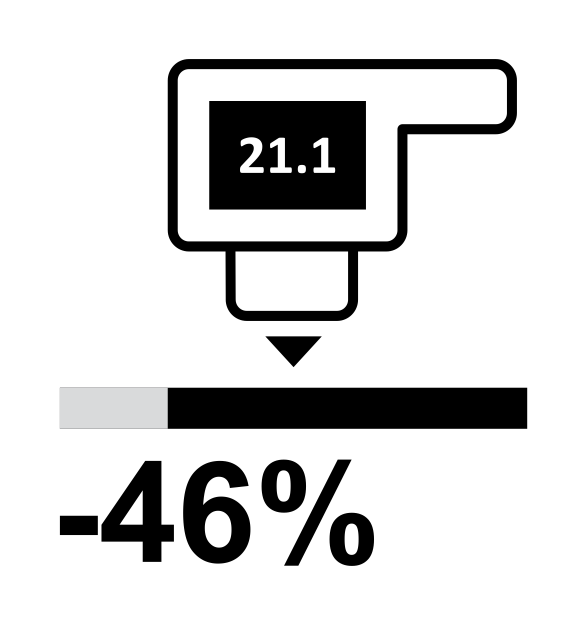

Edge position = 0% | Edge position = -46% |
|---|---|
|
|
The web edge is located in the center of the camera measuring range. | The web edge is located at -46% of the camera measuring range. |
CCD camera CCD CAM 100
On this type of CCD camera the web edge position is displayed as a percentage or absolute value dependent on the operating mode set.
Operating Mode | DIL Switch | Display of the Edge Position | ||
|---|---|---|---|---|
S1.1 | S1.2 | S1.4 | ||
CCDPro 30000 | OFF | ON | — | Percentage value
Relative position of the web edge with regard to the camera measuring range |
CCDPro 5000 | ON | OFF | — | |
CCD CAM 100 | OFF | OFF | OFF | |
OFF | OFF | ON | Absolute value
Absolute position of the web edge within the camera measuring range | |
Examples:

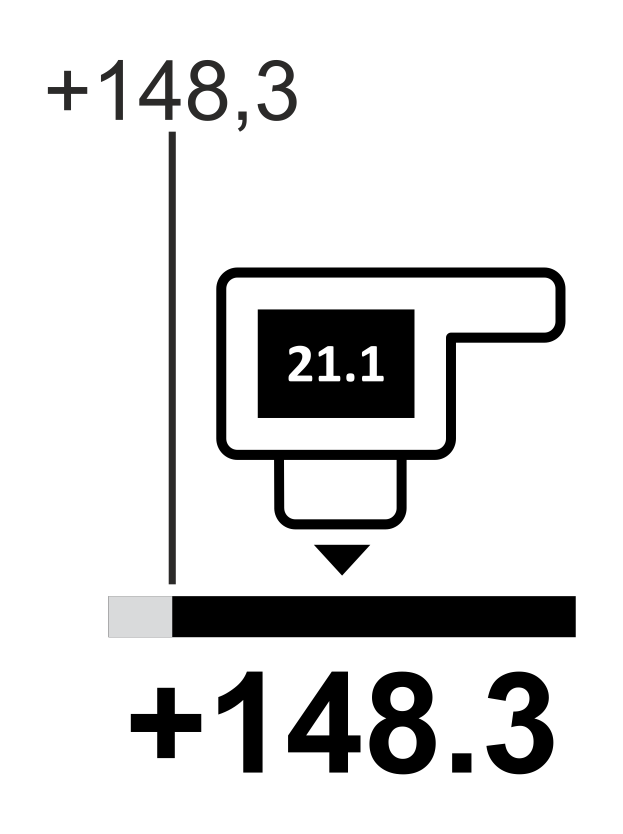

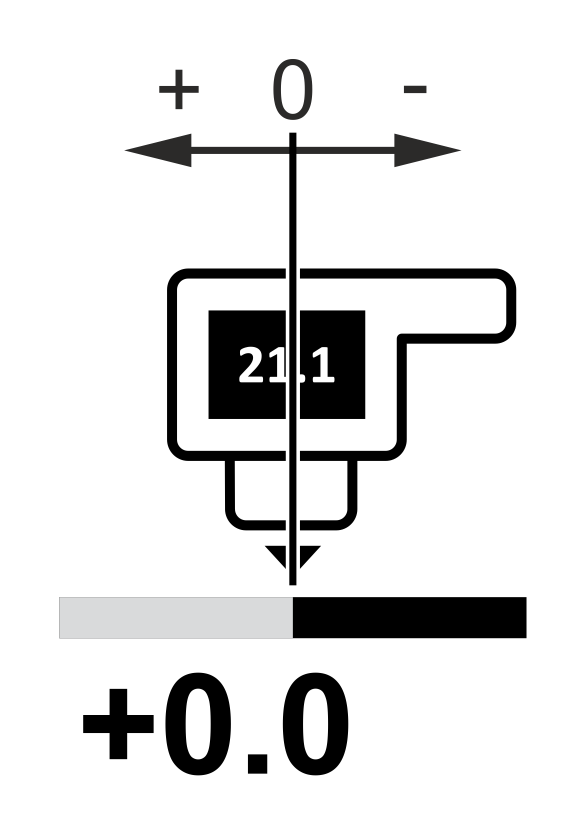

Edge position = 0 | Edge position = +148,3 |
|---|---|
|
|
The web edge is located in the center of the camera measuring range. | The distance from the web edge to the center of the camera measuring range is 148.3 mm. |
