Specifying the Target Width

Using this function, you specify the target width of the web of material.

• At least one warning or error limit is activated. For activating the warning and error limits see Specifying the Warning and Error Limits.

• The web width is displayed. For activating the web width display see Displaying the Web Width).

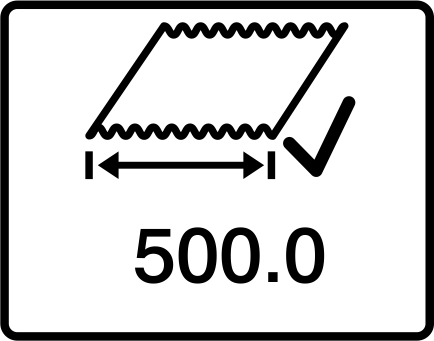

1. Tap on the adjacent button in the lower right corner of the web width display.

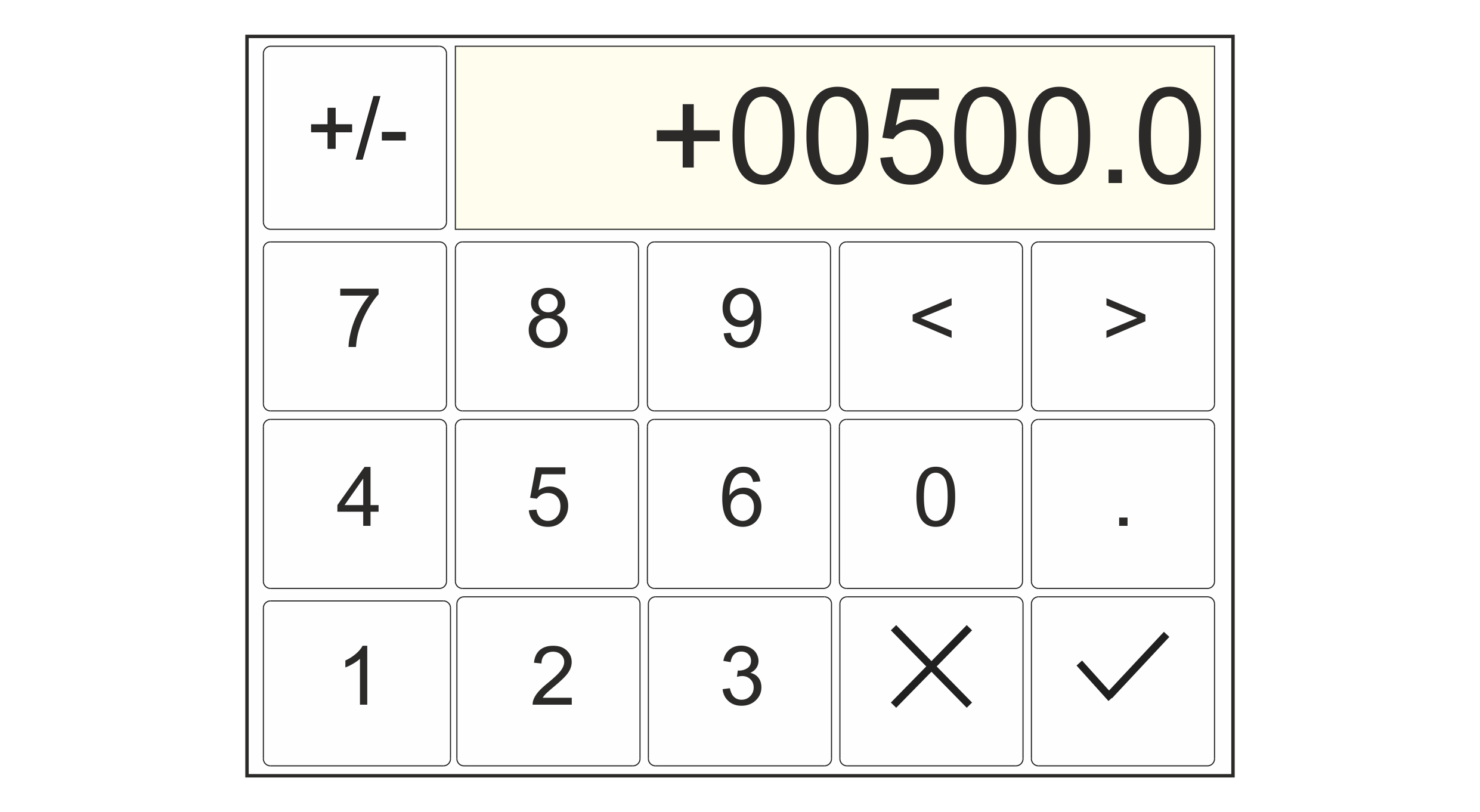

• A numeric keypad is displayed.

2. Enter the desired target width.

3. Confirm your entry with the button.

• The keypad is closed.

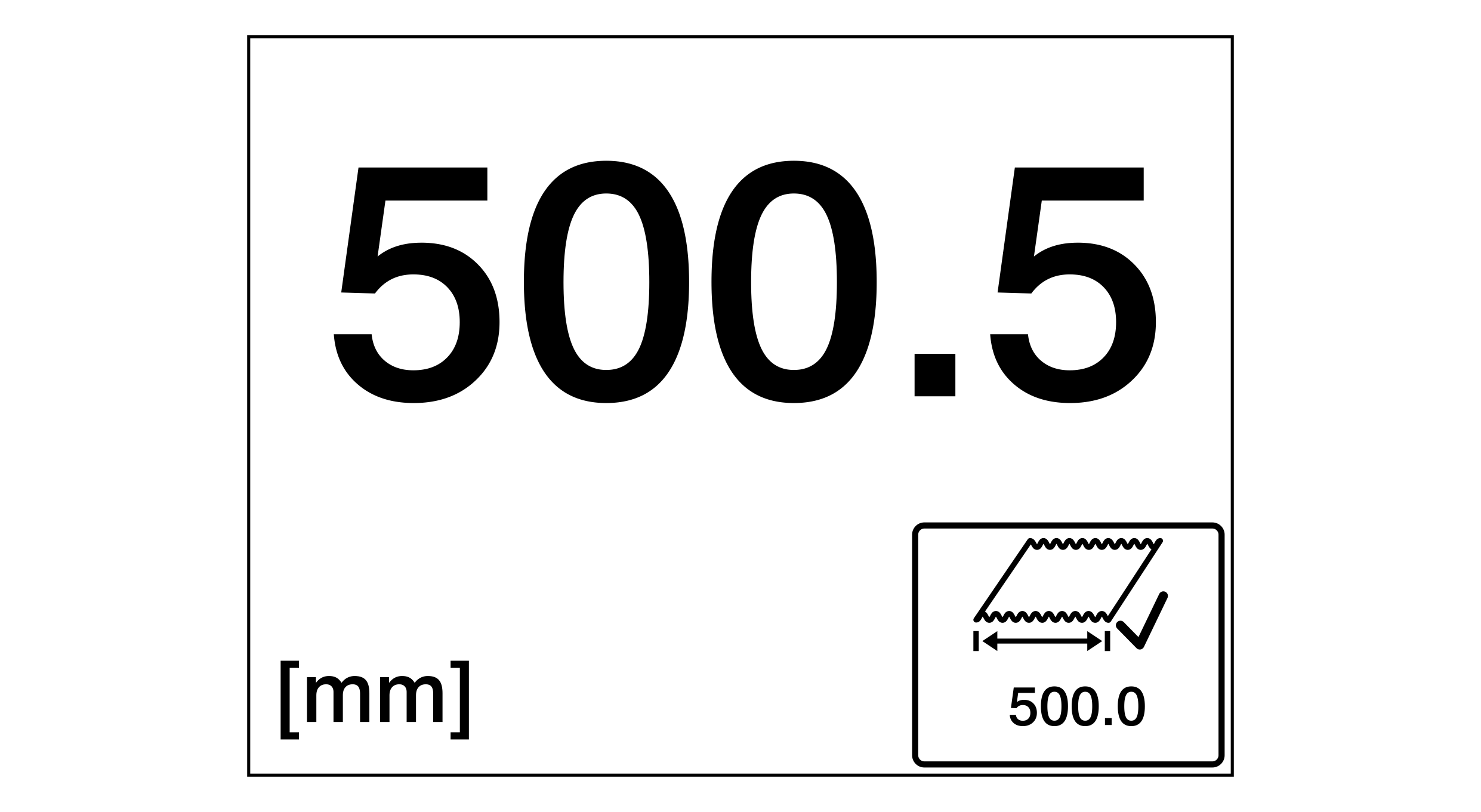

• The new target width (500.0 in the example) is displayed on the button.
