Controller Interlock Active

When the controller interlock is active, the warning symbol Controller interlock active appears in the display.

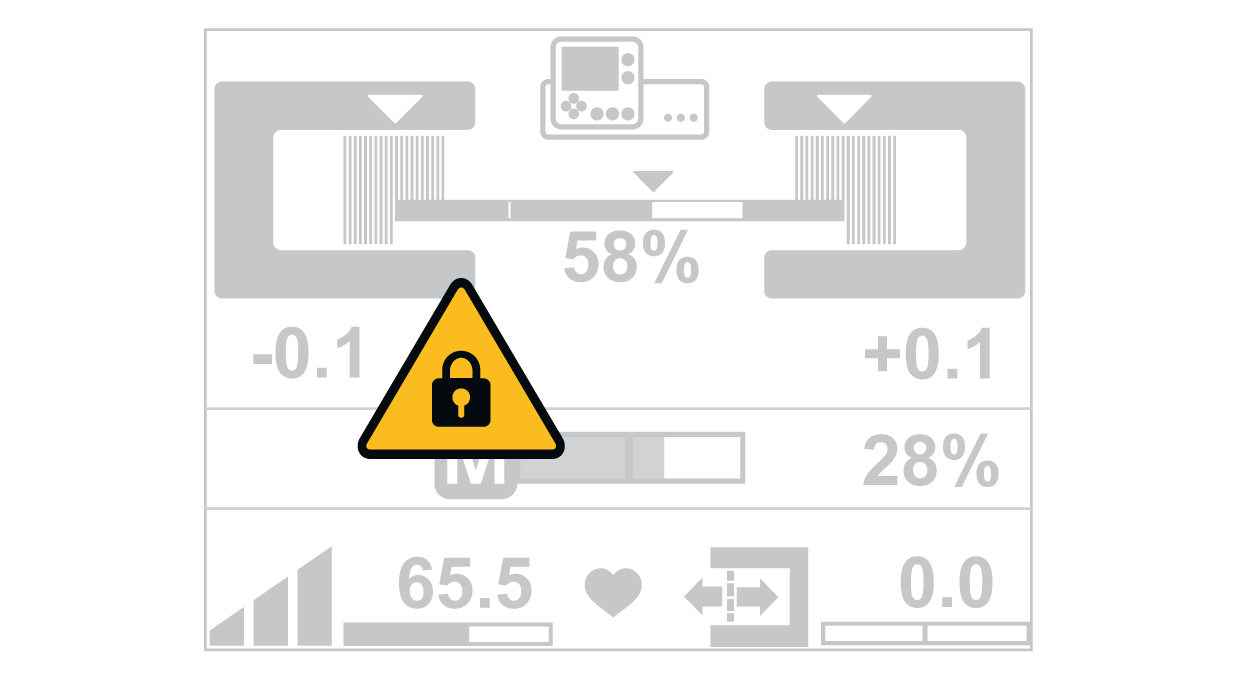

Screen display with active controller interlock

A controller interlock (e.g. when the machine is stopped) can be triggered via the digital inputs, by an external switch or a PLC signal. If the controller interlock is active, the output of the output stage for the actuator is switched off. The actuator will not undertake any guiding movements.

Controller interlock

Activation

For all operating modes
(Automatic, Manual mode, Center positioning)

See terminal strip X10, terminal 1 and 2*

Only for operating mode
Automatic

See truth table*

* For activating the controller interlock see installation and commissioning manual , document number .
