Connections on the Controller
The connector sockets and cable glands are located on the bottom of the controller housing. These allow different web guiding components to be connected. The following table shows the designations of the connector sockets for the different product variants.
Rotate the smartphone by 90 degrees to show the entire table.
Product Variant | Version | Designation of the Connector Sockets |
|---|---|---|

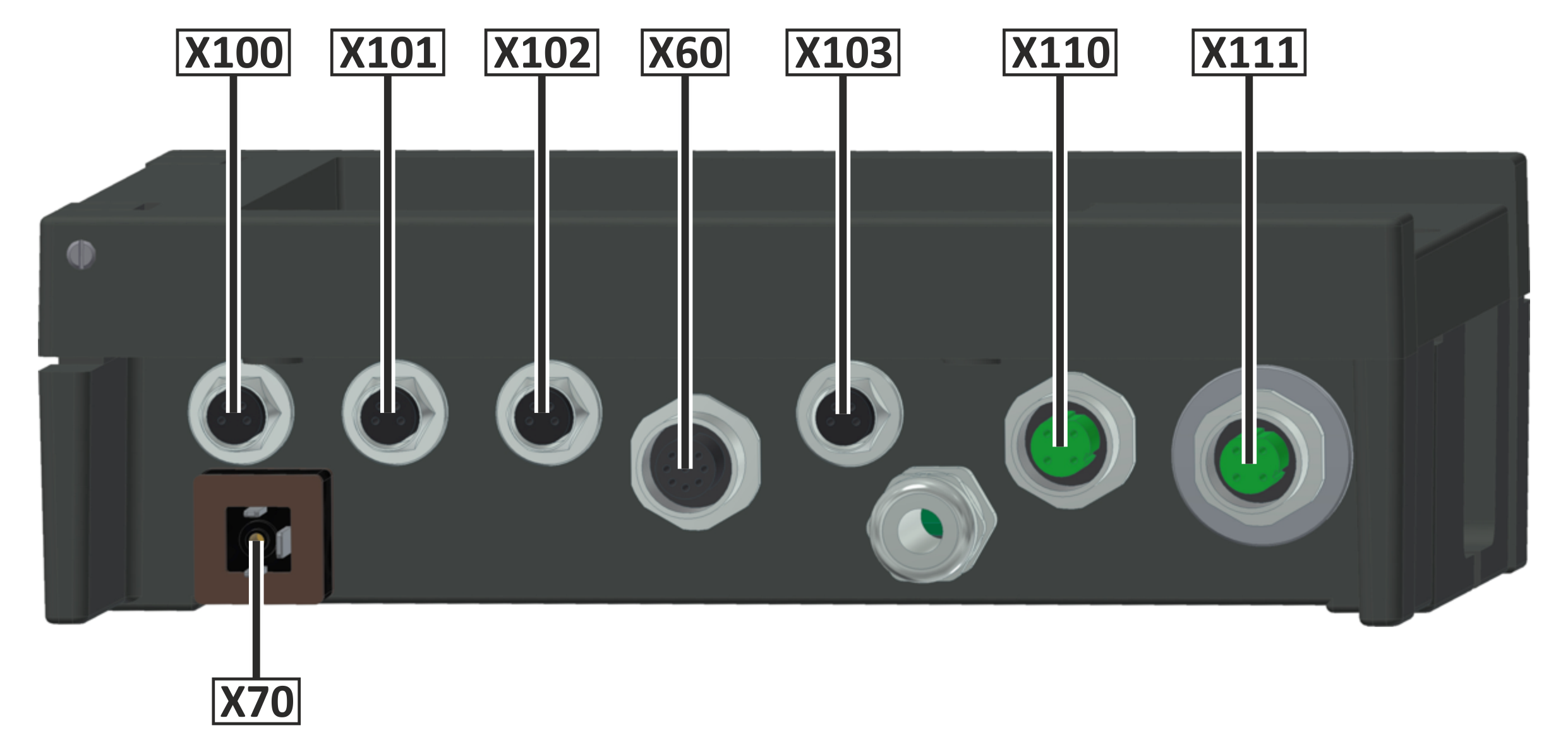

ekr CON 600 | Standard version |
|

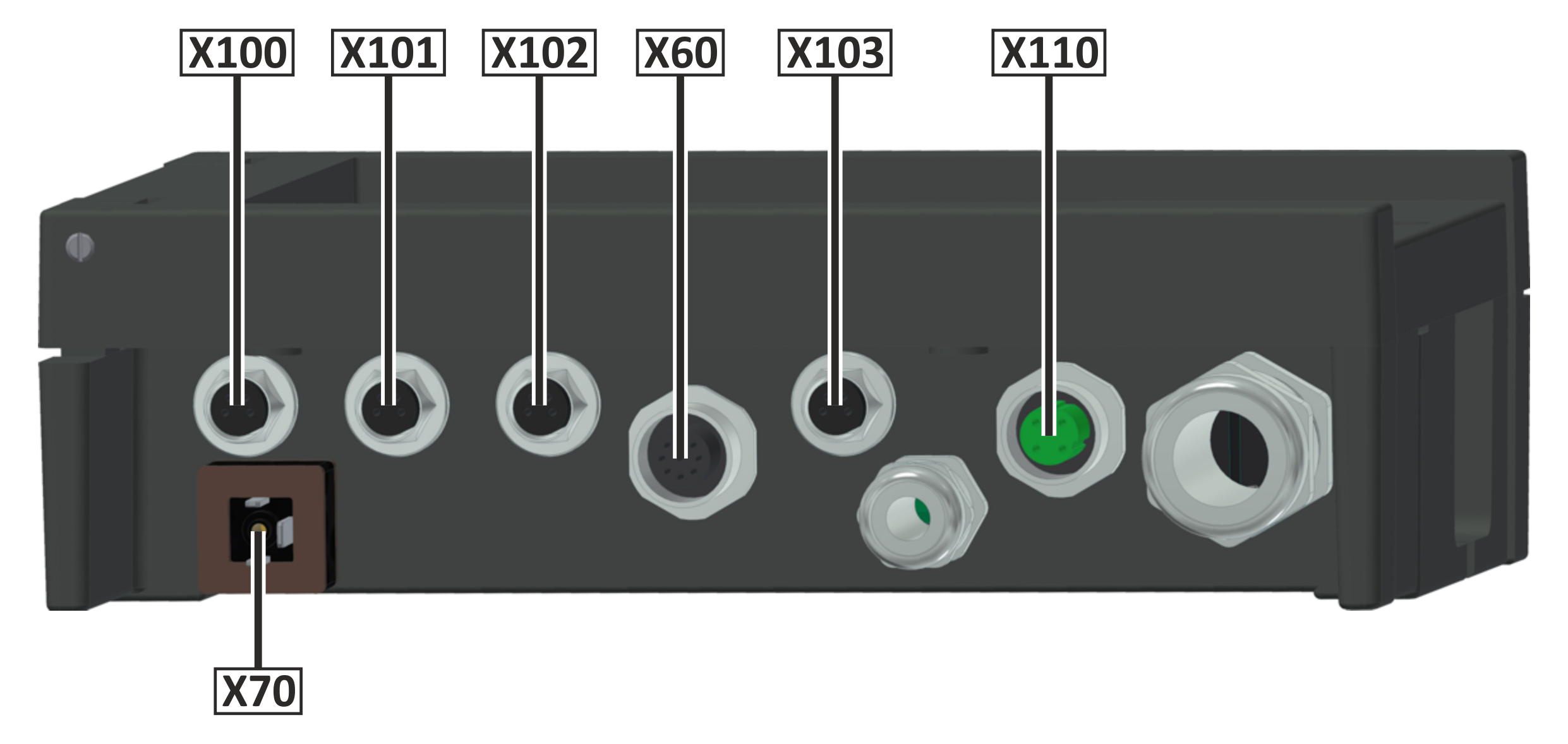

ekr CON 600 net | Profinet, |
|
Profibus |
| |
Ethernet |
|
