Edge Sensors

Sensor

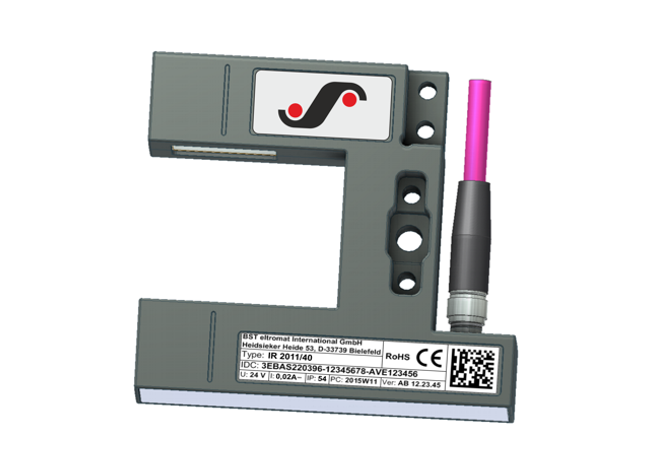

IR 2011/40

IR 2011/70

Fork width

40 mm

70 mm

Selectable operating modes

Standard, Narrow, Auto Setup, Nonwoven, Dynamic, Marginal Perforation

—

Measuring range
Analogue mode

16 mm
(±8 mm)

16 mm
(±8 mm)

Measuring range
Digital mode

Operating mode dependent

• Standard, Nonwoven, Dynamic:
  24 mm (±12 mm)
• Auto Setup:
  20 mm (±10 mm)
• Narrow, Marginal Perforation:
  7 mm (±3.5 mm)

20 mm
(±10 mm)

Scan rate

Operating mode dependent

• Standard, Narrow, Auto Setup, Marginal Perforation: 250 Hz
• Nonwoven: 125 Hz
• Dynamic: 500 Hz

250 Hz

Supply voltage

12 to 30 V⎓ (including ripple)

Current consumption

20 mA (24 V⎓)

Light emitter wave length

630 nm

Resolution / Repeatable accuracy*

0.001 mm / 0.01 mm

Linearity

± 0.2 mm

Output signal (analogue mode)

0 to 10 V⎓ (±2.5%)

Output signal (digital mode)

CAN bus

Polarity reversal protection (supply)

yes

Short circuit protection
(analogue output)

yes

Operation display

LED (2-coloured)

Electrical connection

M8 plug, 4-pin

Ambient temperature
during operation

0 to +60 °C

Storage temperature

-10 to +70 °C

Protection category

IP 54

Noise emission

< 70 dB

Weight

< 400 g

< 500 g

Housing dimensions

See separate product data sheet

RoHS conformity

yes

Fork width

40 mm

125 mm

Measuring range

12 mm (±6 mm)

Supply voltage

12 to 30 V⎓ (including ripple)

Current consumption

20 mA (24 V⎓)

Light emitter wave length

950 nm

Scan rate

250 Hz

Resolution / Repeatable accuracy*

0.001 mm / 0.05 mm

Linearity

± 0.5 mm

Output signal (analogue mode)

0 to 10 V⎓ (±2.5%)

Output signal (digital mode)

CAN bus

Polarity reversal protection
(supply)

yes

Short circuit protection
(analogue output)

yes

Operation display

LED (2-coloured)

Electrical connection

M8 plug, 4-pin

Ambient temperature
during operation

0 to +60 °C

Storage temperature

-10 to +70 °C

Protection category

IP 54

Noise emission

< 70 dB

Weight

< 500 g

Housing dimensions

See separate product data sheet

RoHS conformity

yes

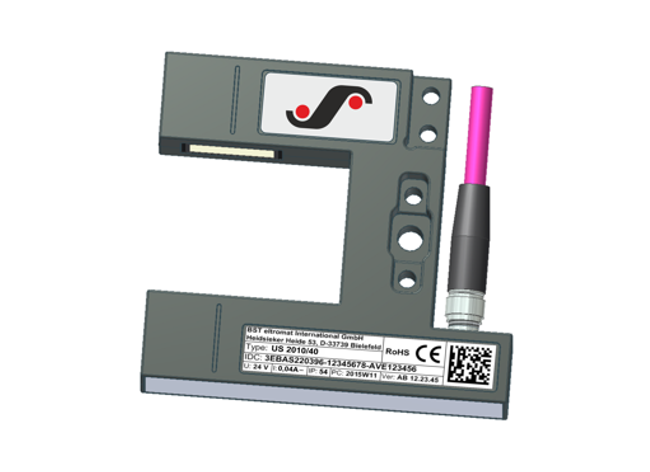

Fork width

40 mm

70 mm

Measuring range

12 mm

12 mm

Supply voltage

12 to 30 V⎓ (including ripple)

Current consumption

40 mA (24 V⎓)

Ultrasonic frequency

164 kHz

Scan rate

200 Hz

Resolution / Repeatable accuracy*

0.001 mm / 0.05 mm

Linearity

± 0.2 mm

Output signal (analogue mode)

0 to 10 V⎓ (± 2.5%)

Output signal (digital mode)

CAN bus

Polarity reversal protection
(supply)

yes

Short circuit protection
(analogue output)

yes

Operation display

LED (2-coloured)

Electrical connection

M8 plug, 4-pin

Ambient temperature
during operation

0 to +60 °C

Storage temperature

-10 to +70 °C

Protection category

IP54

Noise emission

< 70 dB

Weight

< 400 g

< 500 g

Housing dimensions

See separate product data sheet

RoHS conformity

yes
