ekr commander Control Panel

ekr commander control panel

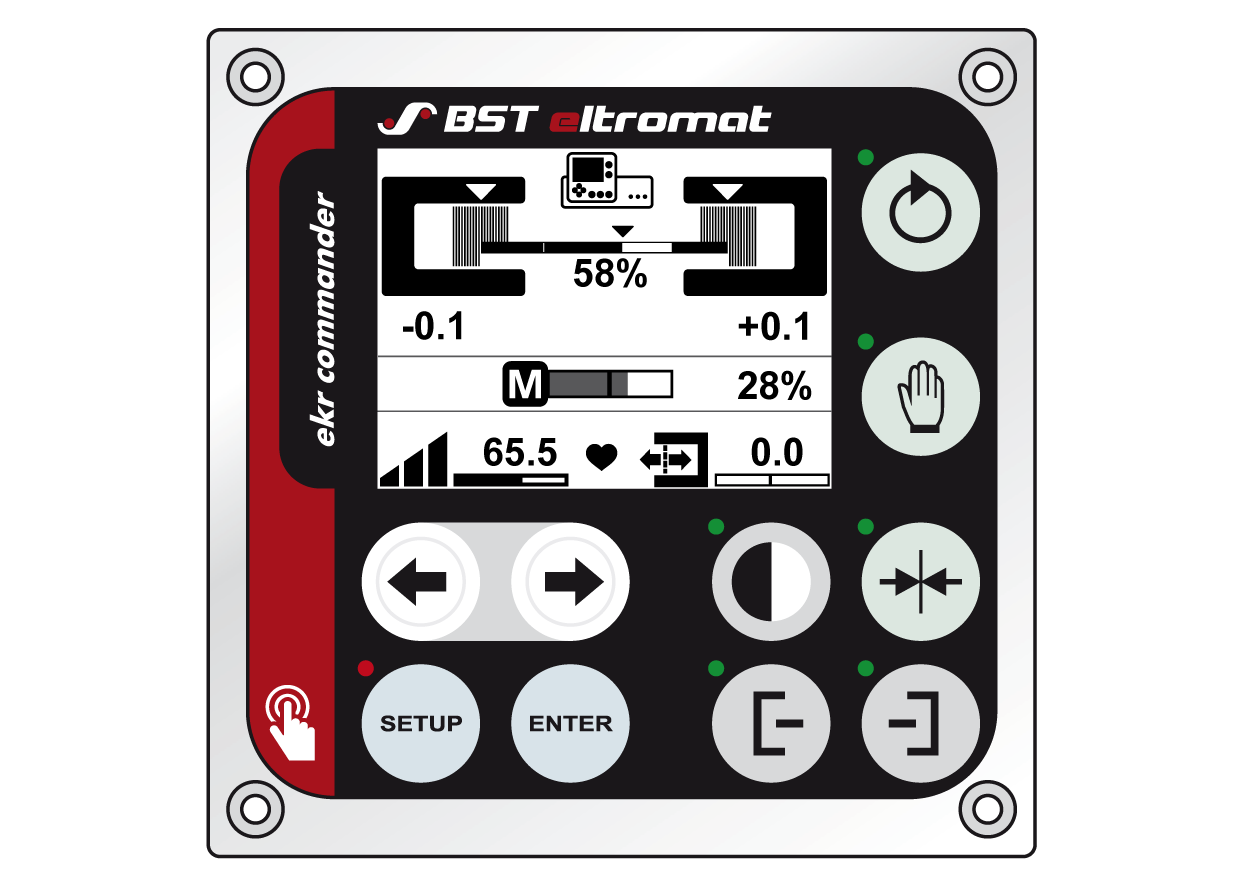

On the control panel you will find all control and display elements that you need for the operation of the web guiding system.

Signals that are located on the remote control inputs of the controller block the keys on the control panel with counter functions.

You can find the function of the individual keys in the following table.

Rotate the smartphone by 90 degrees to show the entire table.

Function	Designation	Description
Operating mode selection	Automatic	Automatic web guiding
	Manual mode	Manual positioning of the guiding device
	Center positioning	Center positioning of the guiding device
Guiding mode selection	Sensor 1	Guiding to the left web edge
	Sensor 2	Guiding to the right web edge
		Web center-line guiding
	Sensor 3	Line / contrast guiding
	Watchdog Sensor 1	Watchdog with sensor 1
	Watchdog Sensor 2	Watchdog with sensor 2
Manual positioning of the guiding device	Arrow keys left / right	In manual operating mode: Position the guiding device to the left / right
Shifting the guiding setpoint	Arrow keys left / right	In automatic operating mode: Shift the guiding setpoint to the left / right
Setup mode	SETUP	In manual operating mode: Call up the setup menu In automatic operating mode: Activate the gain setting
	ENTER	Accept the set value(gain setting)
	Arrow keys left / right	Reduce / increase the parameter value of the gain setting.
