Calibration Template
You need a calibration template for the calibration of the CCD camera.

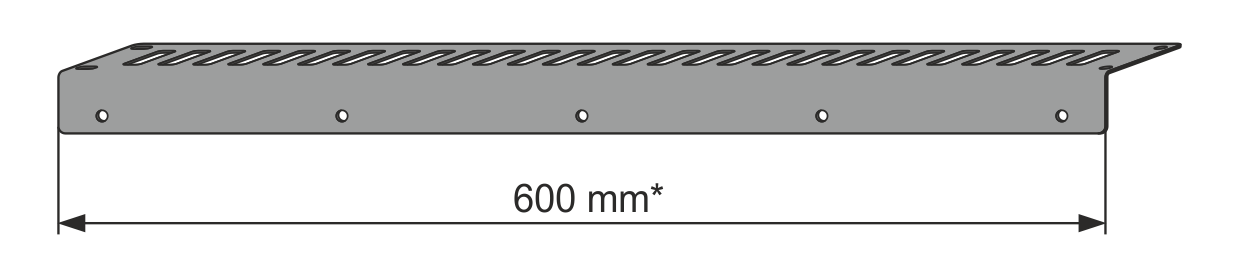

Standard calibration template
* Other lengths on request
The bar width and the hole width of the standard calibration template (order number 229 894) are each 10 mm.
Calibration template (customer-specific)
If you are using a calibration template with another bar and / or hole width, you have to adapt the values of the corresponding parameters (width of bar µm, width of hole µm) in the public list of parameters WebWidthCalib. The parameters of the public list of parameters WebWidthCalib are described in the operating manual ekr CON 600, ekr CON 600 net, document number MD.542.
