Configurable Displays and Setting Menus

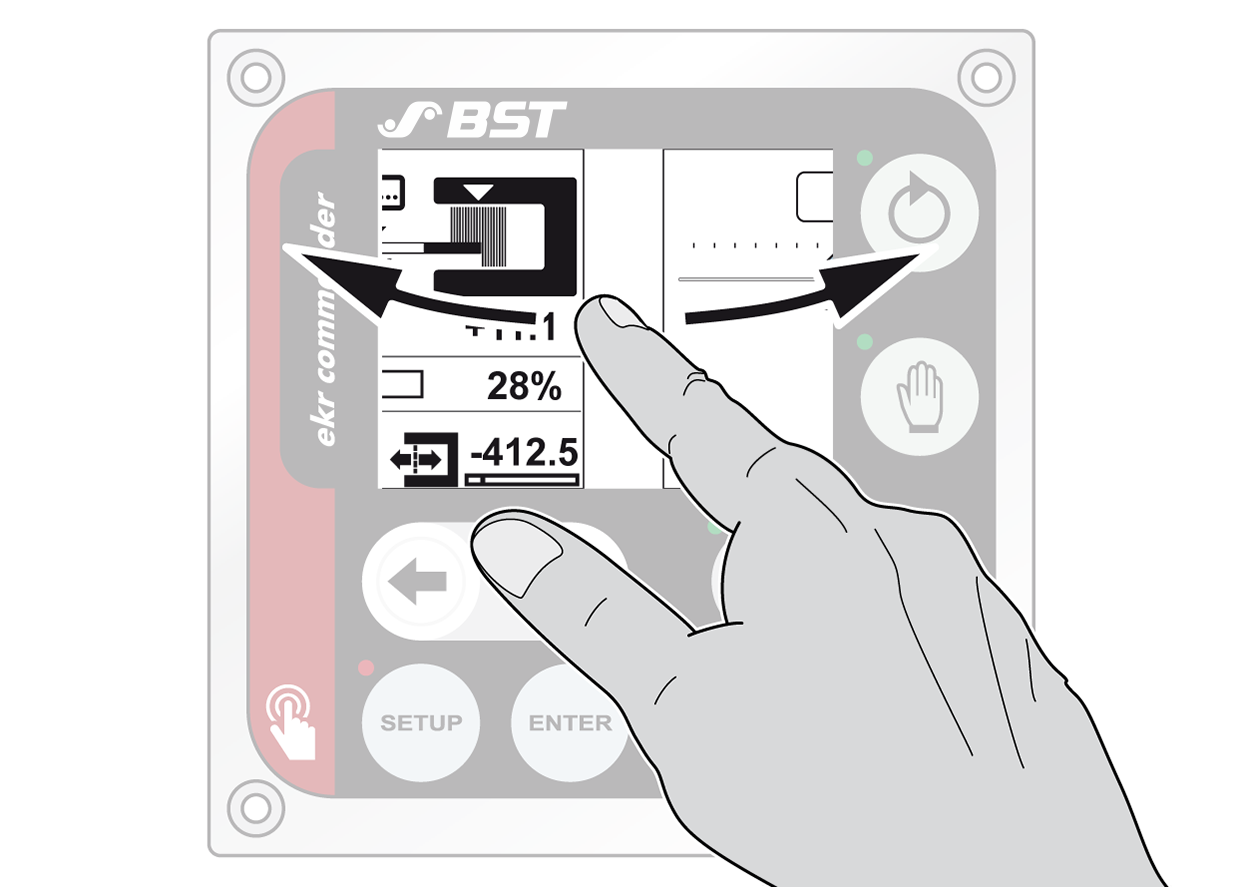

You may reach the configurable displays and setting menus from the operation display by horizontally swiping on the touchscreen.

Swiping function

You can select the pages that are displayed using the swiping function. This means that the display is configurable. The selection of the displays and setting menus that are displayed using the swiping function is done in a special setup menu (see Switching the Configurable Displays and Setting Menus On/Off).

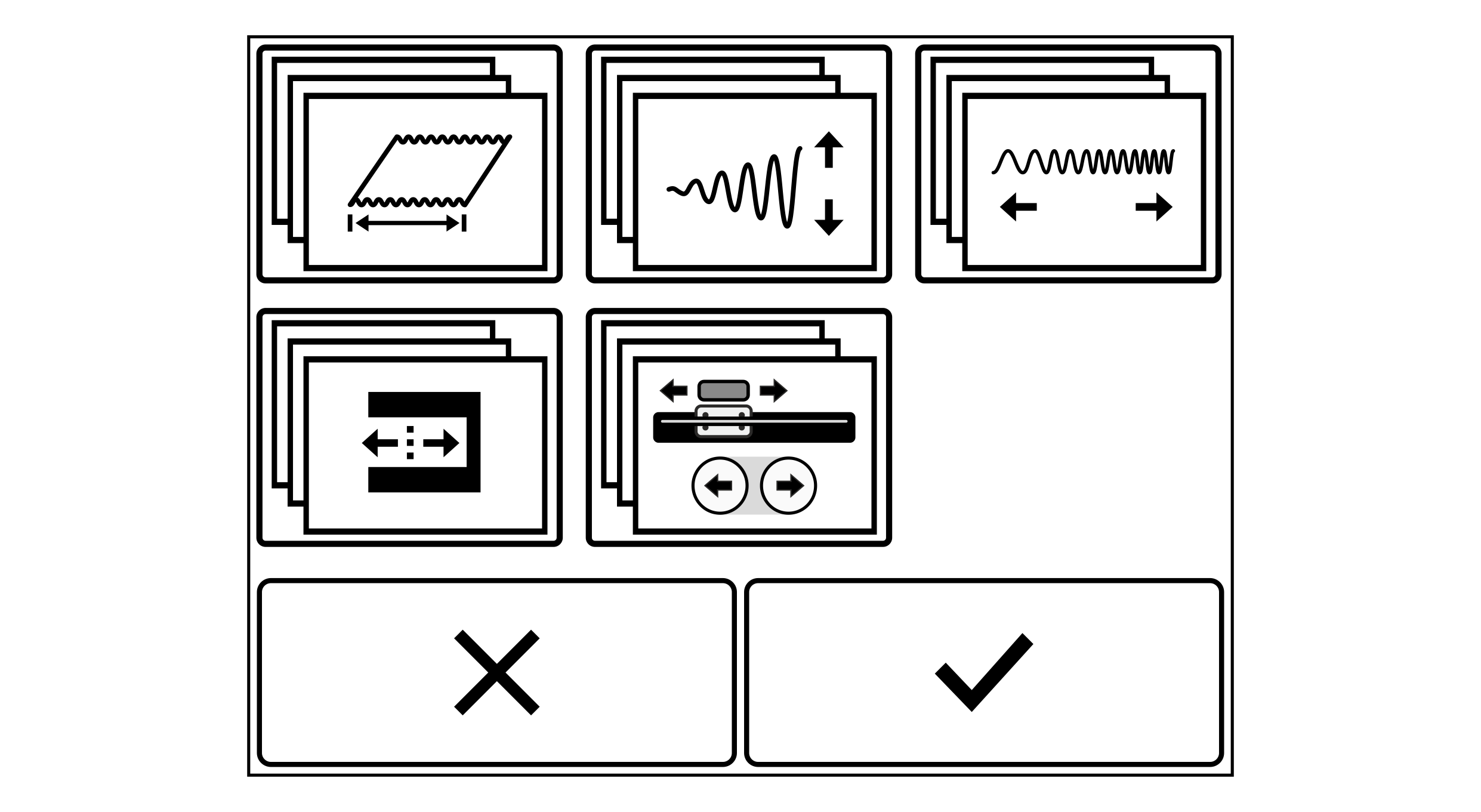

Setup menu for selecting the displays and setting menus

Configurable displays and setting menus

Rotate the smartphone by 90 degrees to show the entire table.

Symbol	Function	Description
	Displaying the web/line width	See Displaying the Web Width
	Adjusting the oscillation amplitude	See Adjusting the Oscillation Amplitude
	Adjusting the oscillation frequency	See Adjusting the Oscillation Frequency
	Setting the guiding setpoint	See Adjusting the Guiding Setpoint with the Setting Menu
	Operating the positioning unit	See Positioning Unit

When swiping on the touchscreen the displays and setting menus selected are displayed one after the other.

The indicator in the upper left corner of the display serves as a navigation aid.

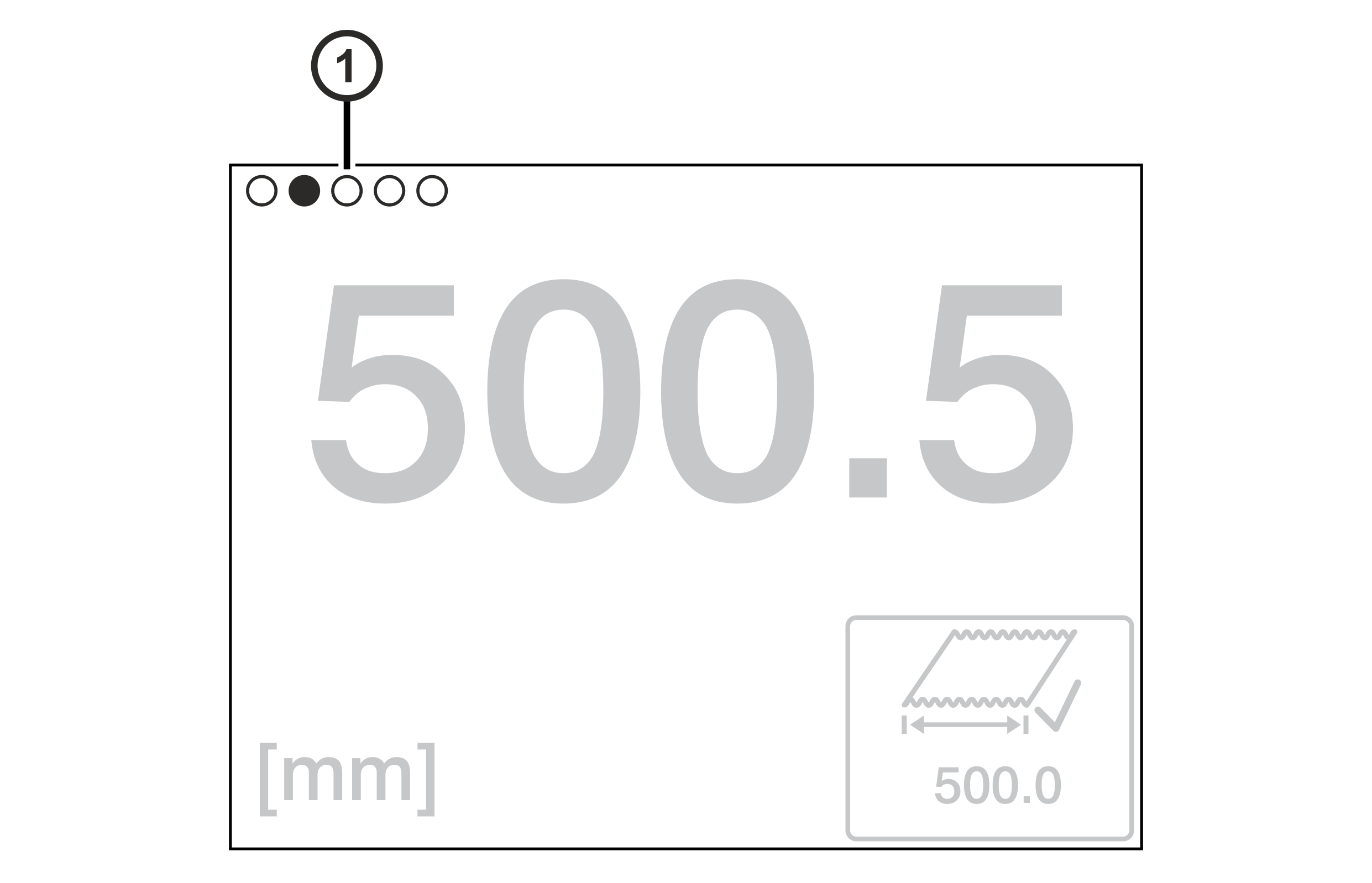

Navigation aid of the swiping function

①	Navigation aid

The number of circles indicates how many displays or menus are activated (five in the example). The black filled circle shows the position of the currently displayed menu within the menu sequence (in the example menu 2 of 5).
