Displaying the Line Width

You can show the line width measured in the display of the ekr commander control panel.

• A CLS Pro 600 line and contrast sensor is connected to the controller.

• The line and contrast sensor is in line mode.

• The line to be monitored is within the measuring range of the line and contrast sensor.

• The line width measurement has been calibrated (see Calibrating the Line Width Measurement).

• The line and contrast guiding mode (Sensor 3) is selected on the controller. The LED of the key is illuminated.

• The width display is activated in the setup menu for the configurable displays and setting menus (see Switching the Configurable Displays and Setting Menus On/Off).

• The display shows the operation display.

• ▶Call up the width display using the swiping function (see Configurable Displays and Setting Menus).

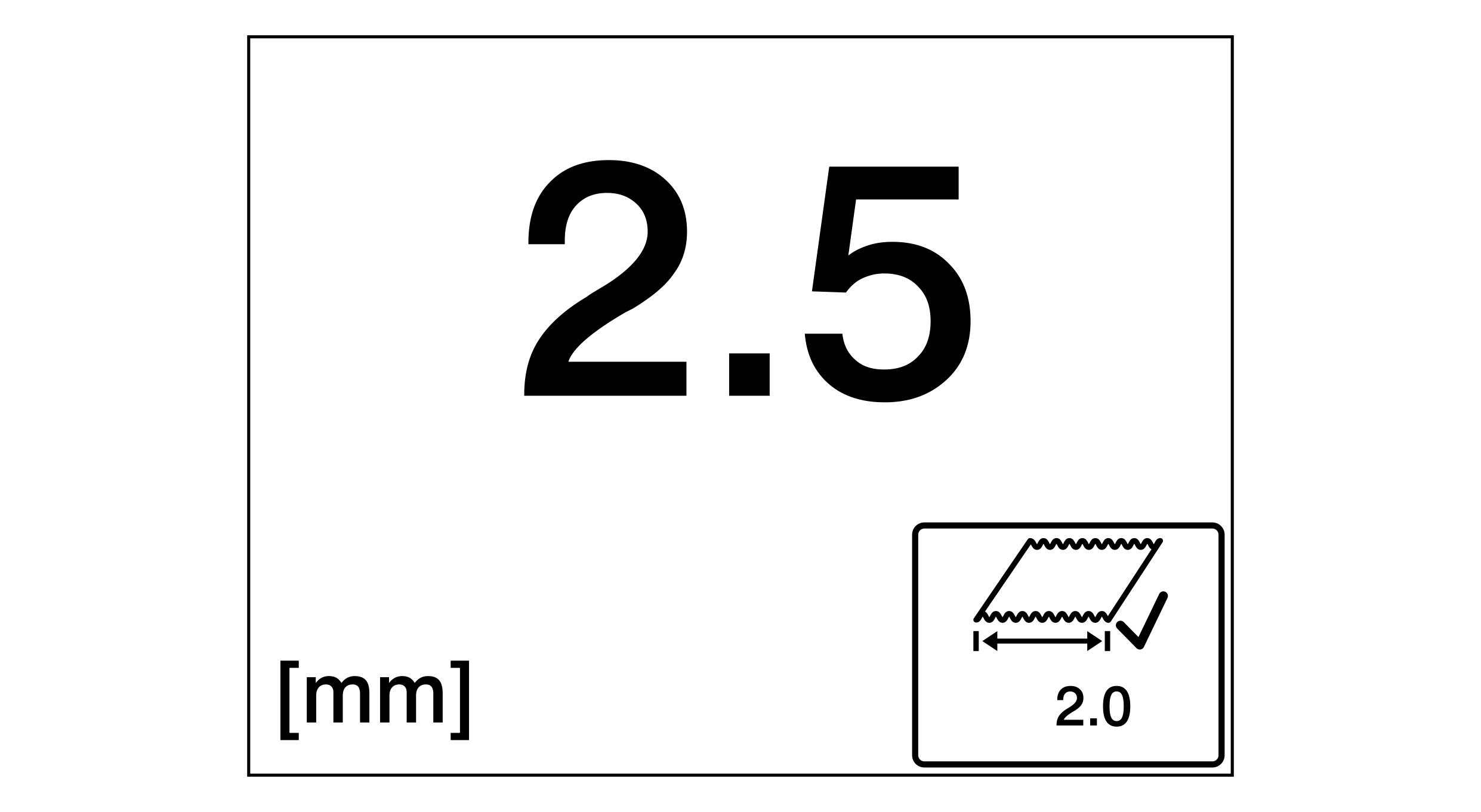

• The line width deternined by the width measurement is shown in the display (2.5 mm in the example).
