Calling Up the Operating Menu
The motorized positioning unit is operated with a special menu, which can be reached from the operation display using the swiping function.
- The operating menu for the positioning unit is activated in the setup menu for the configurable displays and setting menus (see Switching the Configurable Displays and Setting Menus On/Off).
- The display shows the operation display.
- ▶Call up the operating menu for the positioning unit using the swiping function (see Configurable Displays and Setting Menus).

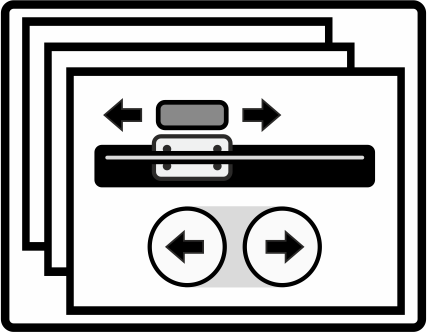

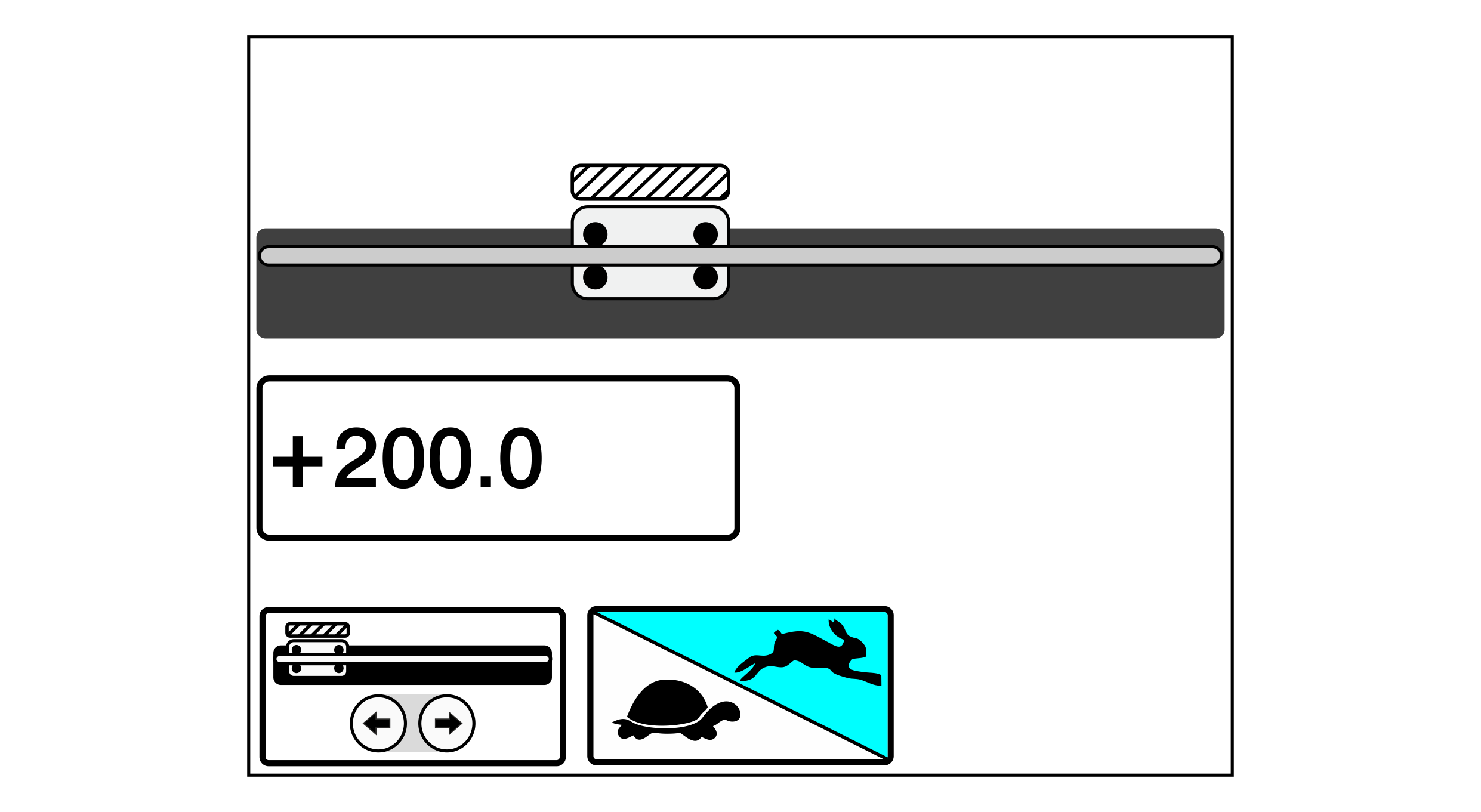

The appearance of the operating menu depends on the number of positioning units connected to the controller. The above illustration and the display screens presented in the following chapters always show the menu for the version with one positioning unit.
Function of the buttons and editing fields
Button/Editing Field | Function |
|---|---|

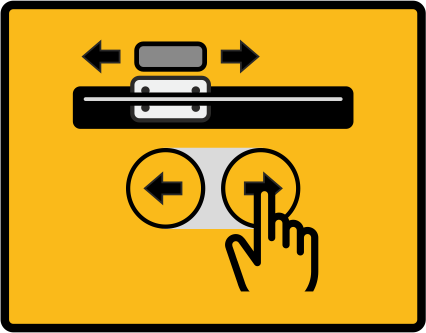

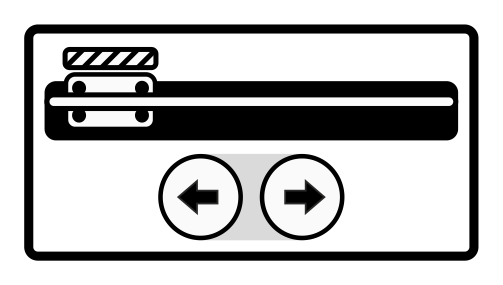

| Switching the sensor positioning with the arrow keys on/off |

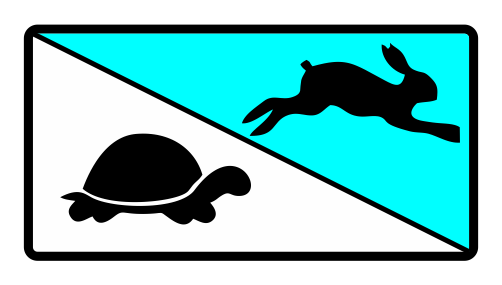

| Selecting the positioning speed |

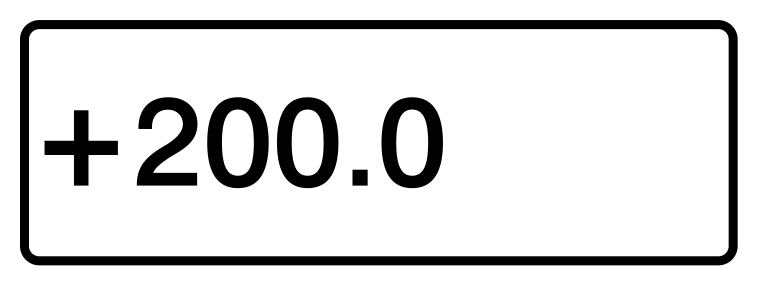

| Entering a target position |
Warning message when calling up the menu
If the controller has detected no motorized positioning unit, the adjacent warning symbol is displayed instead of the menu.
Additional information
