Calling up the Setup Menu

In the setup menu, activate the different setting functions and service displays of the controller. The setup menu comprises several pages.

Setup menu

In the setup menu only symbols are displayed for setting functions used for components that are connected to the controller.

Calling up the setup menu

Press the Manual mode key.

The LED of the key illuminates.

The controller switches to manual mode.

Press the SETUP key.

The controller changes to setup mode.

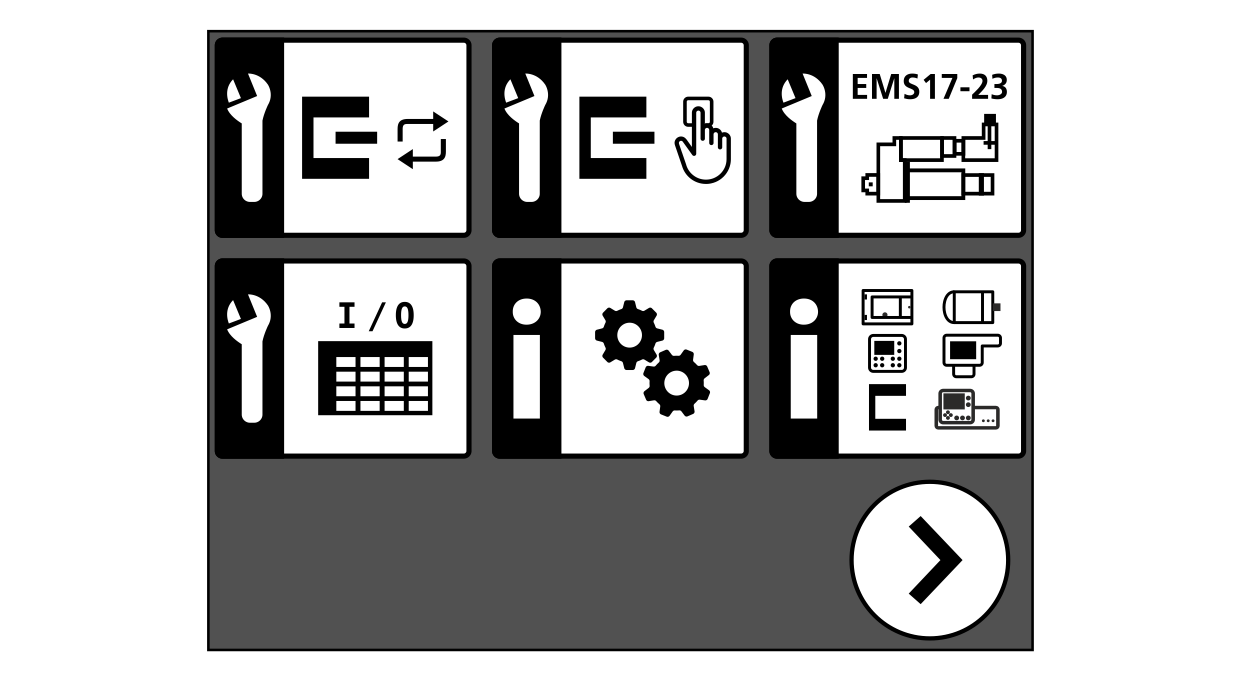

The first page of the setup menu appears in the display.

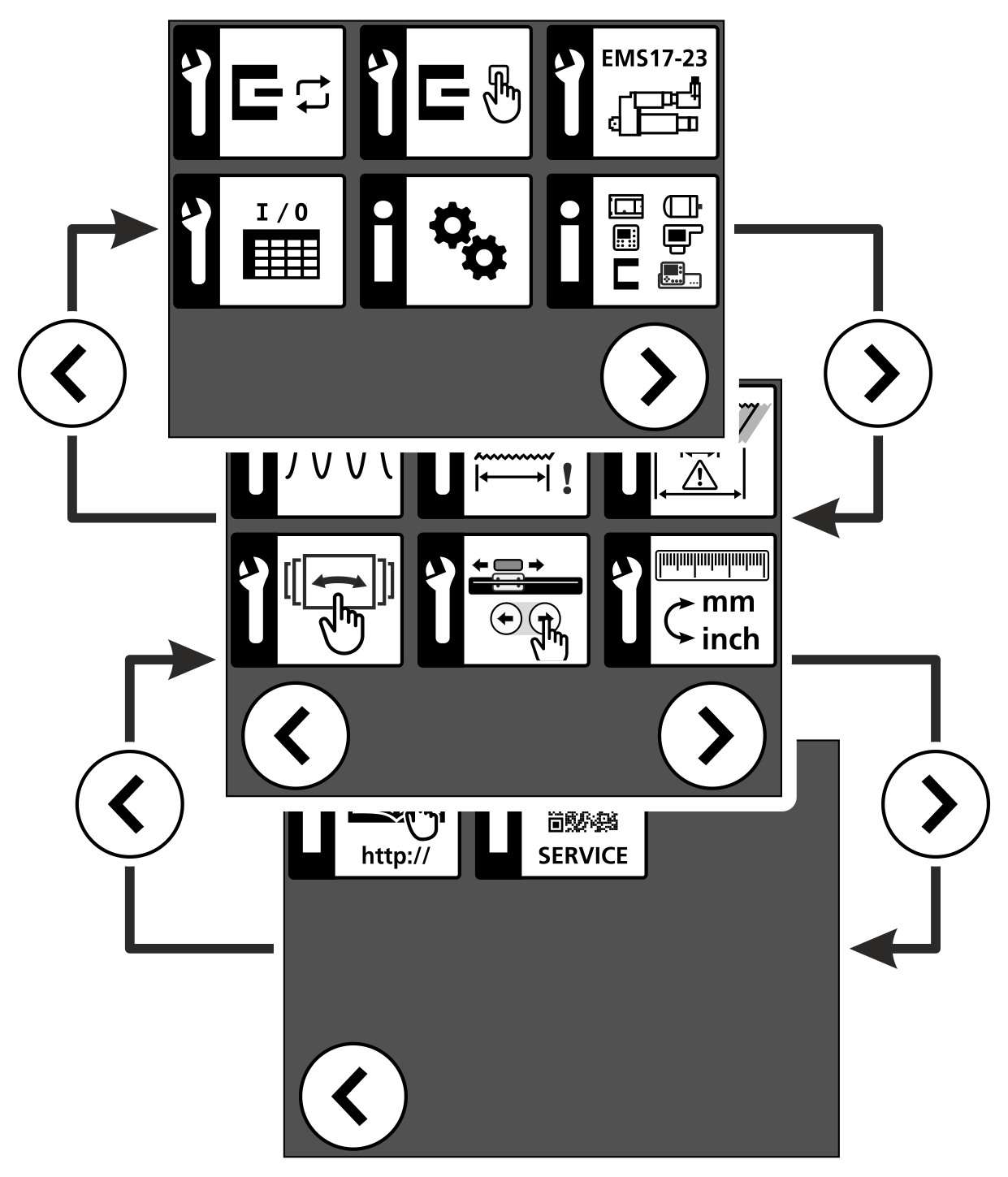

To call up the next page of the setup menu, keep pressing the right arrow button until the desired menu page is shown in the display.

Tap the symbol of the desired setting function or service display on the touchscreen.

The setting menu or service display selected appears in the display.

Setting functions and service displays

For the meaning of the different symbols please refer to the following table.

Rotate the smartphone by 90 degrees to show the entire table.

	Component/Function	Setting/Display Function	Description
Setting functions	Edge sensor	Performing the automatic material setup	See Automatic Material Setup
		Performing the manual material setup	See Manual Material Setup
		Selecting the IR 2011/40 edge sensor operating mode	See Selecting the Operating Mode for the IR 2011/40 Edge Sensor
	Actuator with position feedback	Setting the stroke limitation and servo-center position	See installation and commissioning manual*
	Digital inputs / outputs	Selecting a function table	See installation and commissioning manual*
	Oscillation	Defining the basic settings	See Defining the Basic Settings
	Width measurement	Calibrating the width measurement	See Calibrating the Web Width Measurement
	Width measurement	Setting the warning and error limits	See Specifying the Warning and Error Limits
	CCD camera	Calibrating the CCD camera	See installation and commissioning manual*
		Carrying out the material thickness compensation	See installation and commissioning manual*
		Entering the position offsets	See installation and commissioning manual*
	Configurable displays and setting menus (swiping function)	Selecting the displays and setting menus that can be displayed using the swiping function	See Configurable Displays and Setting Menus
	Positioning unit	Commissioning the positioning unit for Sensor 3	See installation and commissioning manual*
	Sensor positioner	Commissioning the sensor positioner	See installation and commissioning manual*
	Dimension unit	Setting the dimension unit for the display and entry of values (mm or inch)	See installation and commissioning manual*
Service displays	Controller, control panel	Showing the installed hardware, firmware and boot loader versions	See Displaying System Information
	System components	Showing the system components connected	See Displaying System Components
	Link to the company website	Calling up the BST homepage	See Displaying a Link to the Company Website
	Service QR code	Showing service information and transmitting it to BST service	See Displaying Service QR Code
	C2E Coupler (CAN-To-Ethernet coupler)	Showing the network settings of the C2E Coupler	See installation and operating manual C2E Coupler, document number MD.420

* Installation and commissioning manual ekr 500 digital Unit Touch, document number MD.497
